With snow shovel (required during snow cleaning operation) installed, front overhang: 1300mm, total vehicle length:12090mm; With snow roller brush (required during snow cleaning operation) installed, front overhang: 1340mm, total vehicle length:12130mm; Side protection: Q235B, bolt connection; Rear protection: Q235A, bolt connection, section size: 120mm x 50mm, ground clearance: 530mm; Center ice shovel is optional for installation during the ice cleaning operation; Front tire model: 385/65R22.5; Back tire model: 315/80R22.5; ABS model: ESP8.1; ABS manufacturer: BOSCH; Equipped with a satellite positioning driving recorder. The vehicle is used to remove ice and snow from roads in winter; The optional material and devices for the vehicle are: deicing agent, spreader, snow shovel, snow roller brush and ice shovel.
Specifications

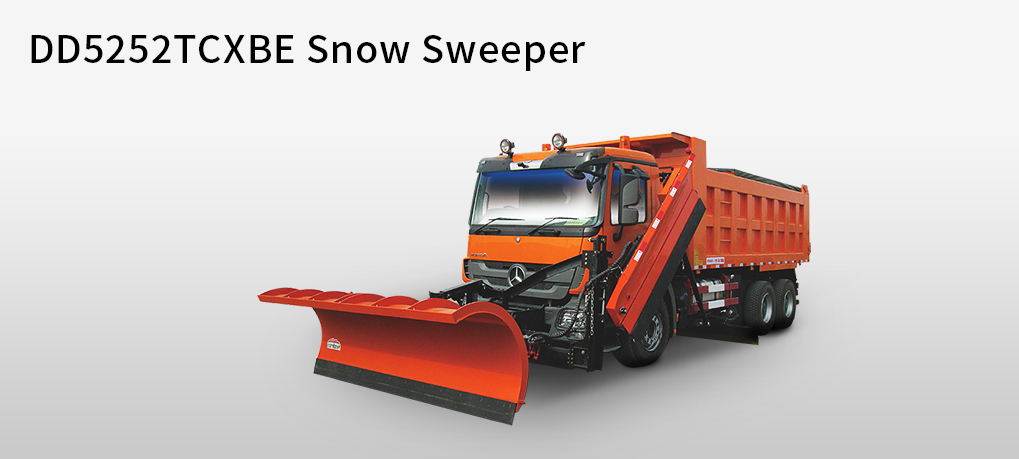

Name DD5252TCXBE Snowplow
Size: L x W x H(mm) 12130,12090,10790 x 2550 x 3370
Cargo compartment dimension(mm) -
G.V.W.(kg)(kg) 25000
Curb mass(kg) 18000
Rated loadkg) 6870
Wheel base(mm) 4500+1350
Number of axles 3
ABS have
Approaching angle/ departure angle 13/17
Front & rear overhang(mm) 2810/2130
Maximum speed(km/h) 90
Tire number 10
The specification of tires 385/65R22.5/315/80R22.5
Front track 2036
Rear track 1804/1804
Oil consumption rate(L/100Km) -
Emission standard GB17691-2005 guo V .GB3847-2005
