• Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3

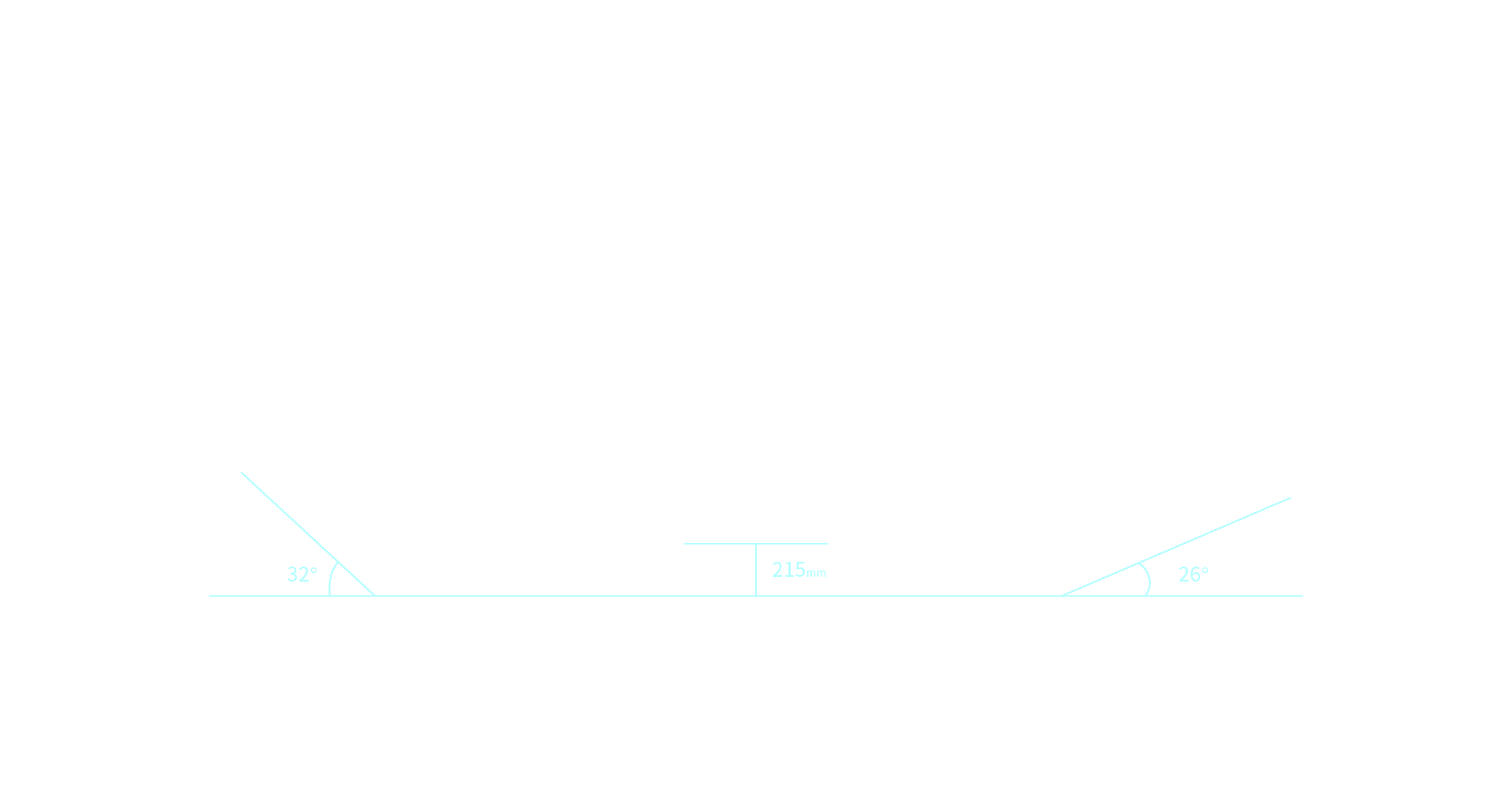

  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	160
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	1800
  Gross mass(kg)	2775

• Engine

  close

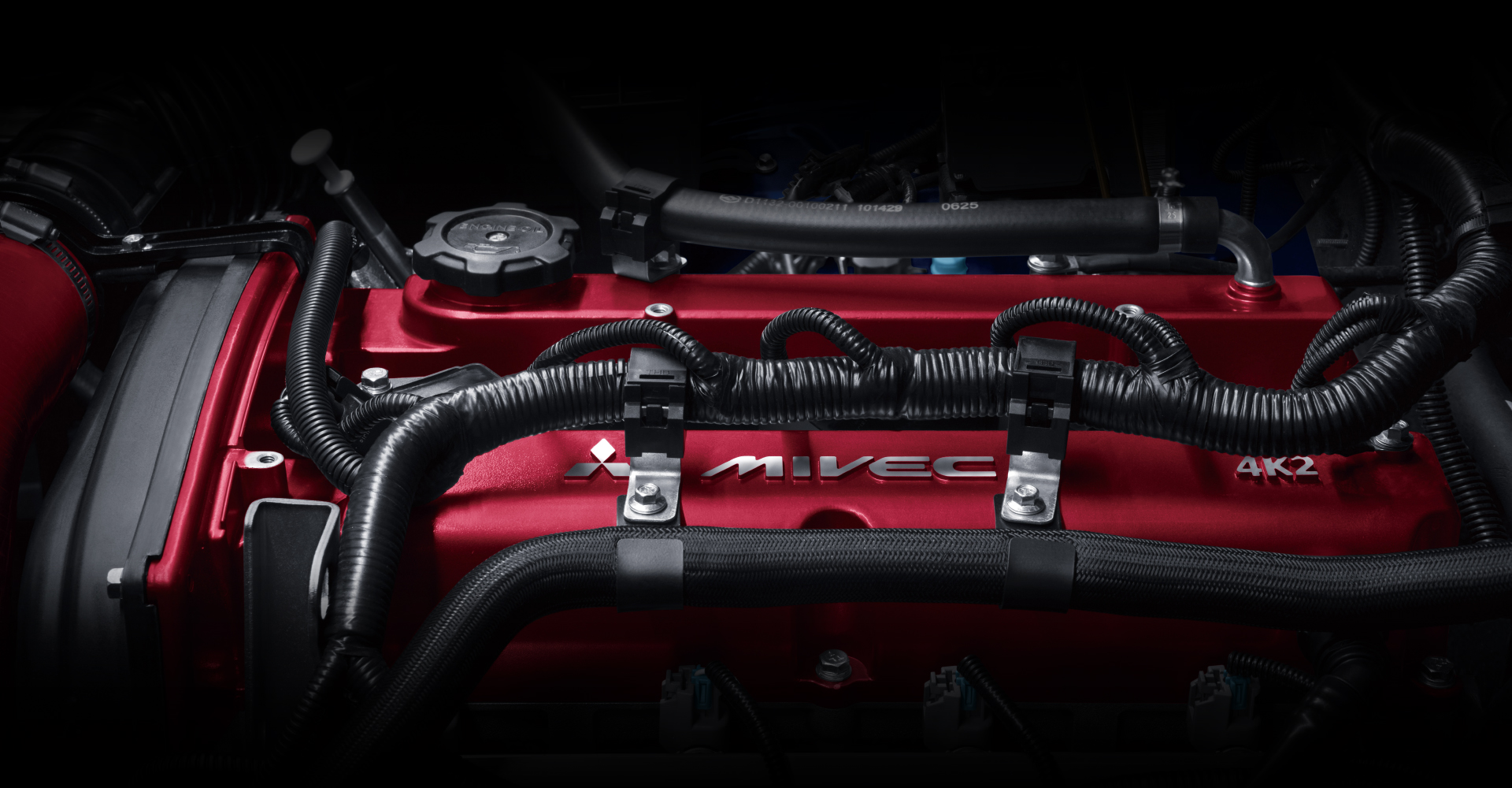

  Engine model	4K22D4T(guo VIB)
  Engine type	The water cooled inline-four cylinder turbo-charged multi-point EFI engine
  Engine displacement（L）	2.378
  Maximum power(KW)	160
  Maximum torque(N.m)	320
  Revolutions of maximum power(rpm)	5600
  Revolutions of maximum torquer(rpm)	2000-4000
  Type of transmission	6MT
  Type of fuel	gasoline

• Safety Devices

  close

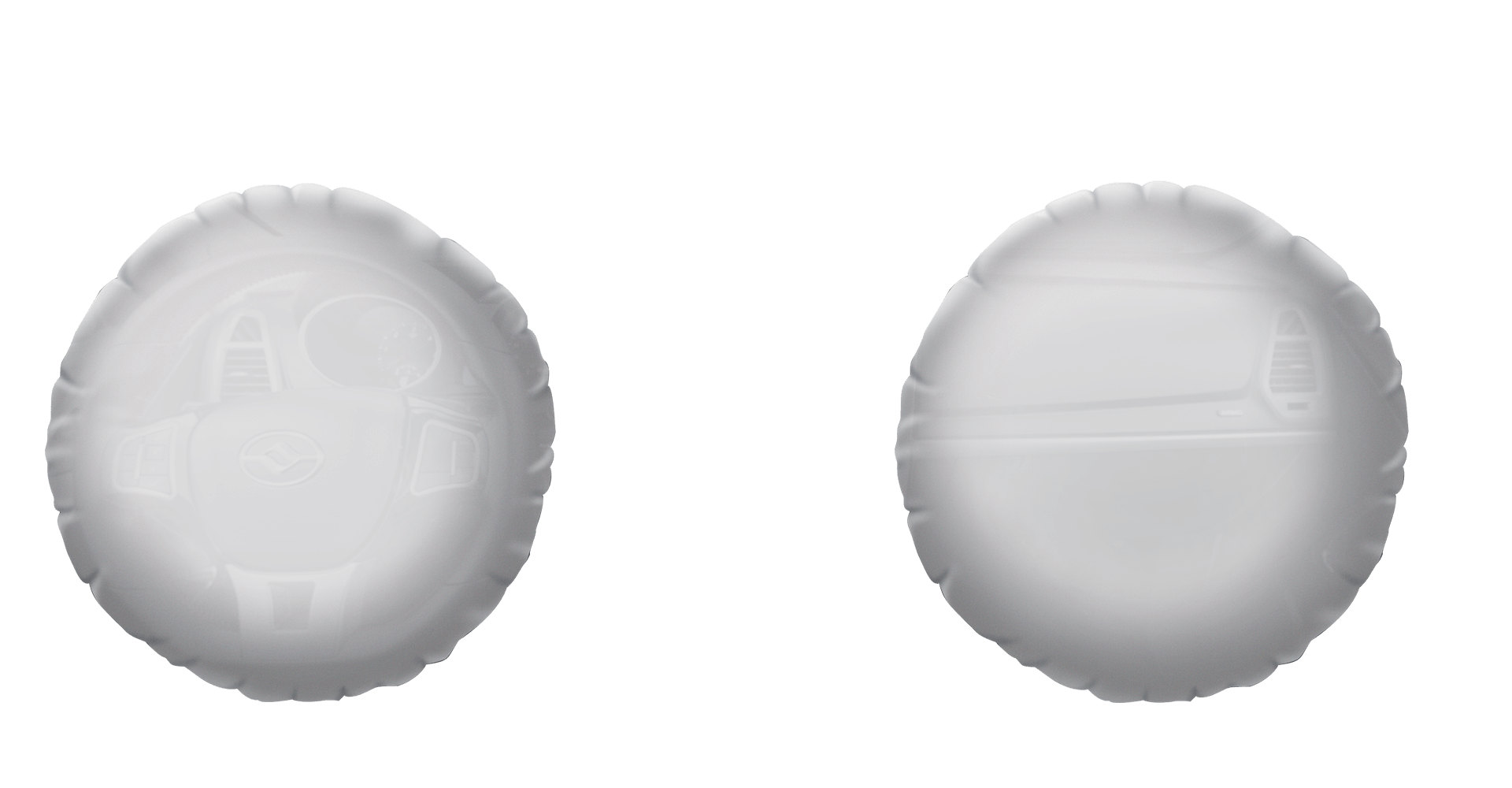

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●

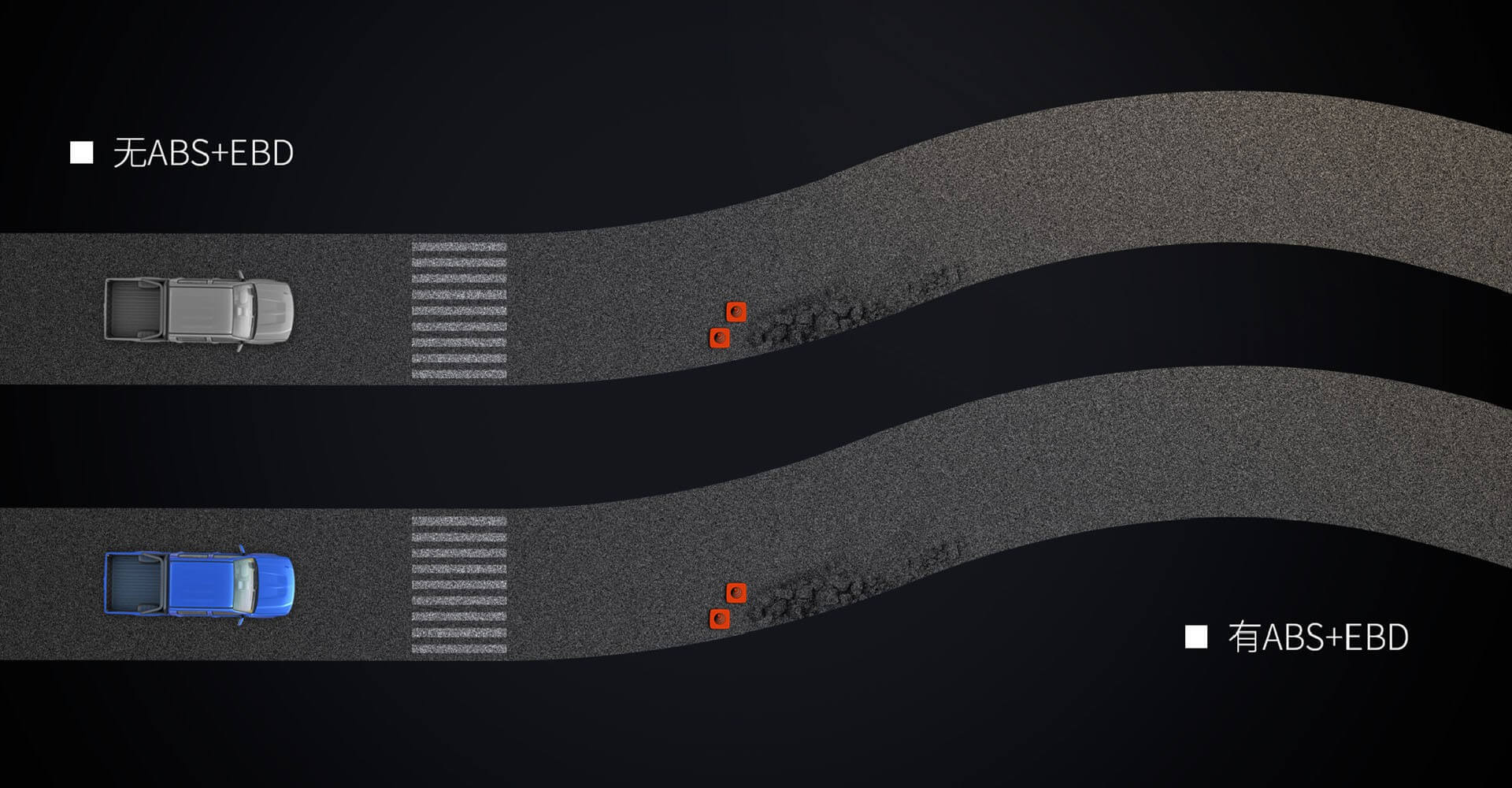

  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	—
  Tire pressure monitoring system	—
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●

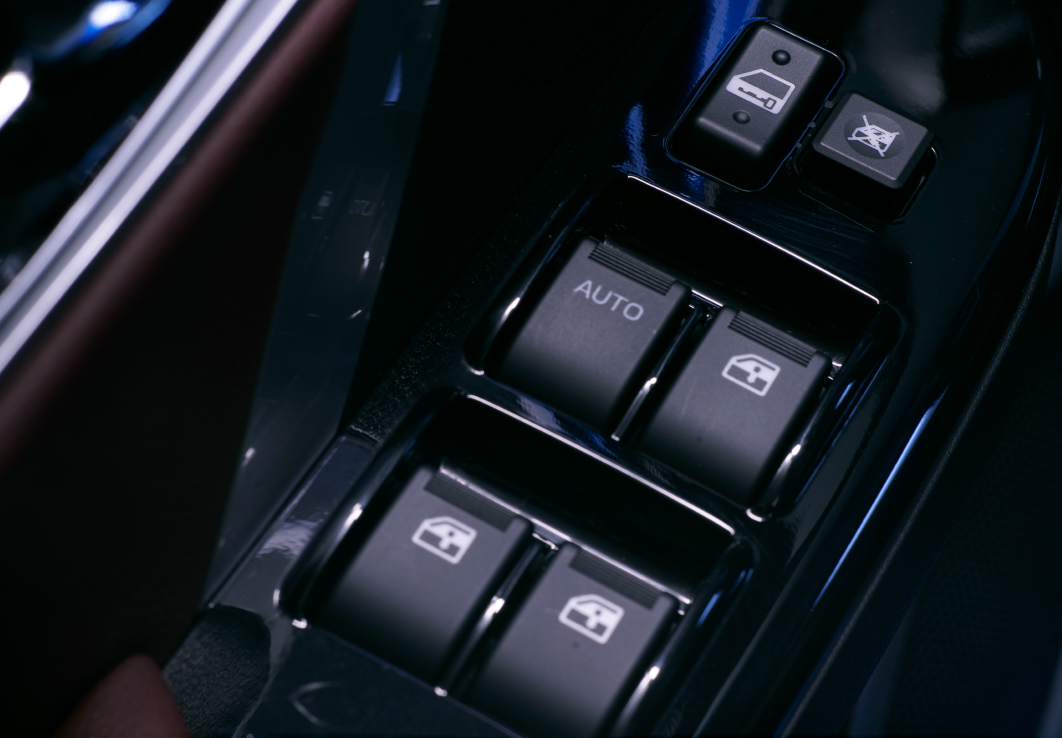

  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	—
  Faux leather steering wheel	●
  Real steering wheel	—

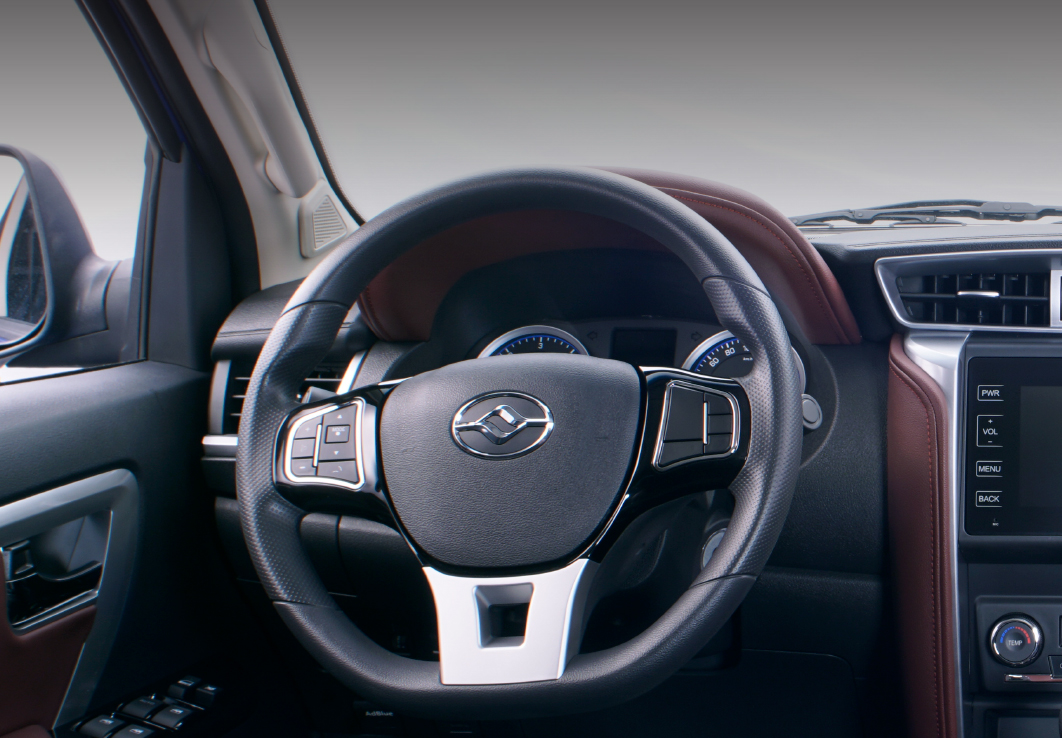

  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	—

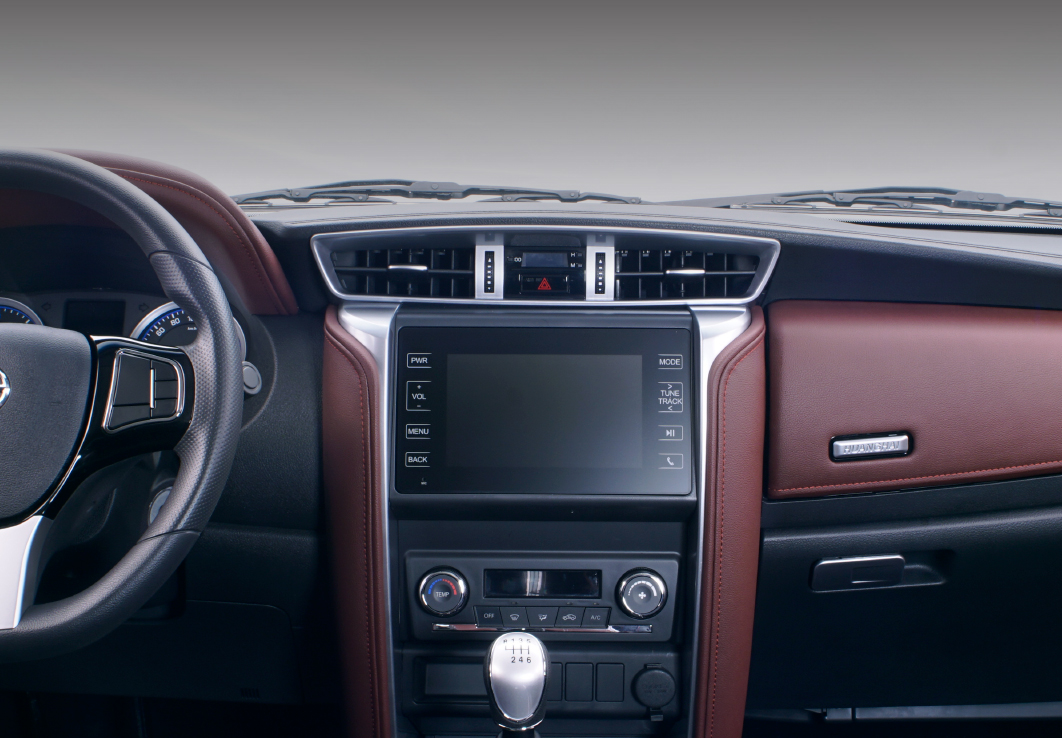

  Control screen	●
  Electronic clock	●

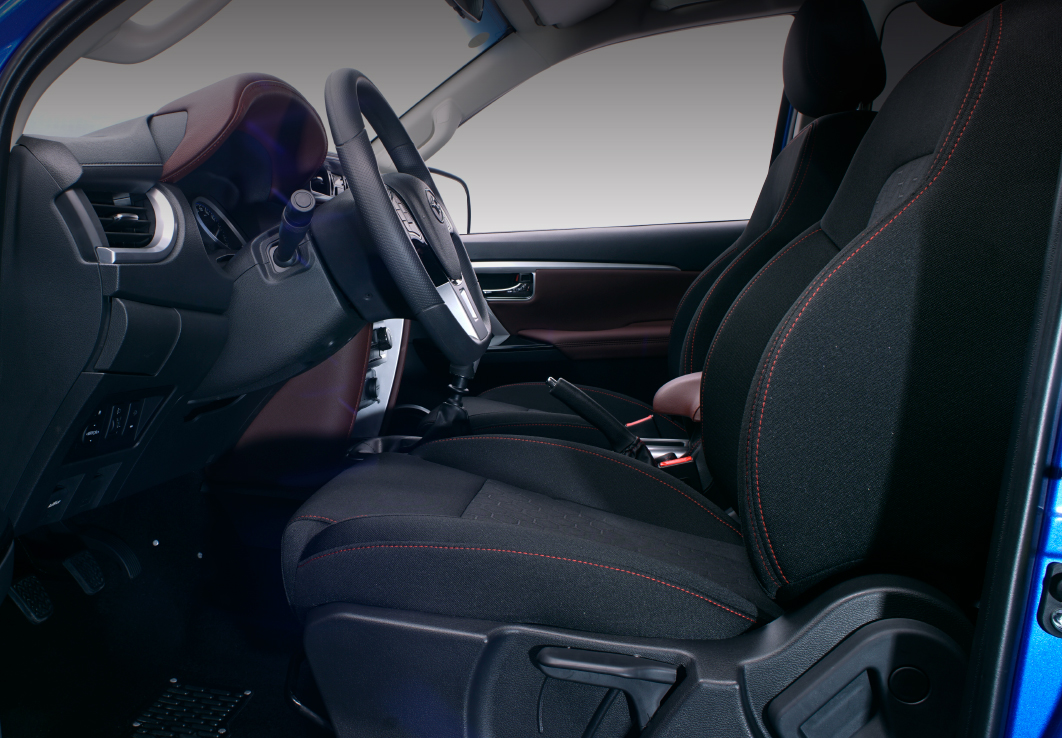

  Seats of woven fabric	●
  Premium leather-wrapped seats	—
  Driver seat (6-way)	●
  Number of the speakers	2
  Metallic paint	●

• Appearance

  close

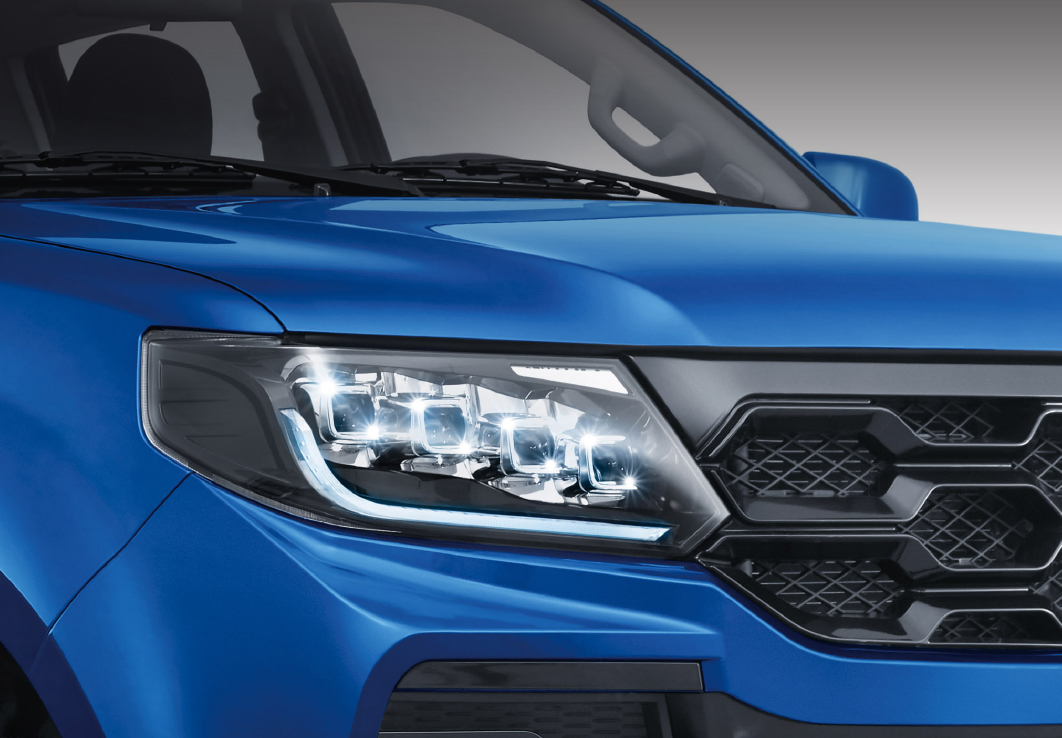

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	—
  Body-color door handles	●
  Electroplated door handles	—
  Electroplated rear view mirrors	—

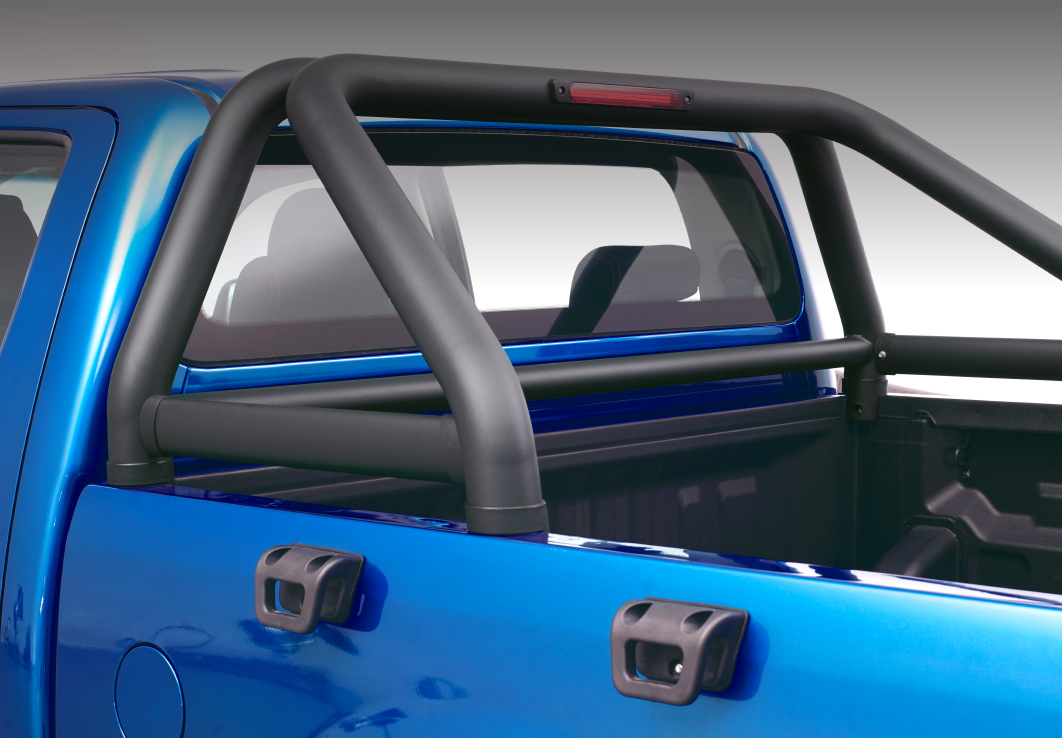

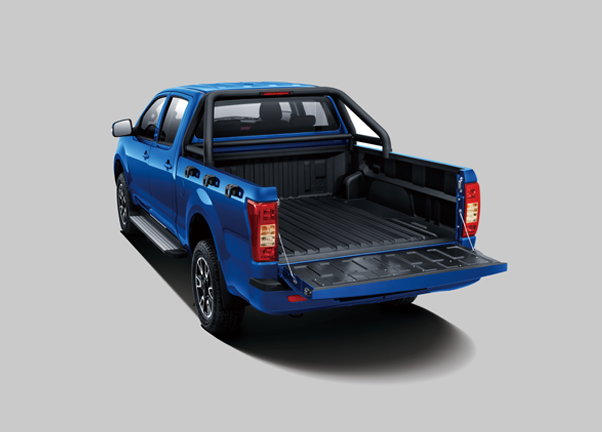

  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●

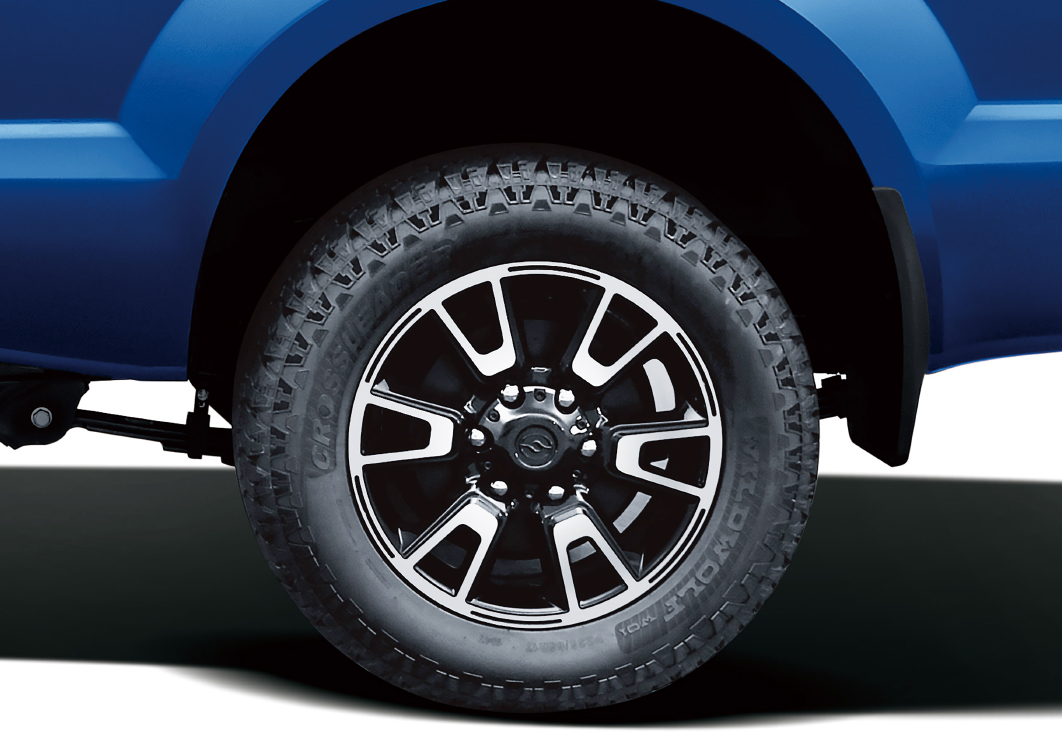

  17“ wheel hubs	●
  Ordinary tires	●
  P235 tires	—
  4WD LOGO at the end	—
  4x4 logo below outside rear view mirrors	—
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	160
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	1800
  Gross mass(kg)	2775

• Engine

  close

  Engine model	4K22D4T(guo VIB)
  Engine type	The water cooled inline-four cylinder turbo-charged multi-point EFI engine
  Engine displacement（L）	2.378
  Maximum power(KW)	160
  Maximum torque(N.m)	320
  Revolutions of maximum power(rpm)	5600
  Revolutions of maximum torquer(rpm)	2000-4000
  Type of transmission	6MT
  Type of fuel	gasoline

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	—
  Tire pressure monitoring system	●
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	●
  Faux leather steering wheel	—
  Real steering wheel	●
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	●
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	—
  Premium leather-wrapped seats	●
  Driver seat (6-way)	●
  Number of the speakers	4
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	—
  Body-color door handles	—
  Electroplated door handles	●
  Electroplated rear view mirrors	●
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	●
  P235 tires	—
  4WD LOGO at the end	—
  4x4 logo below outside rear view mirrors	—
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	160
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	1920
  Gross mass(kg)	2895

• Engine

  close

  Engine model	4K22D4T(guo VIB)
  Engine type	The water cooled inline-four cylinder turbo-charged multi-point EFI engine
  Engine displacement（L）	2.378
  Maximum power(KW)	160
  Maximum torque(N.m)	320
  Revolutions of maximum power(rpm)	5600
  Revolutions of maximum torquer(rpm)	2000-4000
  Type of transmission	6MT
  Type of fuel	gasoline

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	●
  Tire pressure monitoring system	—
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	—
  Faux leather steering wheel	●
  Real steering wheel	—
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	—
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	●
  Premium leather-wrapped seats	—
  Driver seat (6-way)	●
  Number of the speakers	2
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	●
  Body-color door handles	●
  Electroplated door handles	—
  Electroplated rear view mirrors	—
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	—
  P235 tires	●
  4WD LOGO at the end	●
  4x4 logo below outside rear view mirrors	●
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	160
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	1920
  Gross mass(kg)	2895

• Engine

  close

  Engine model	4K22D4T(guo VIB)
  Engine type	The water cooled inline-four cylinder turbo-charged multi-point EFI engine
  Engine displacement（L）	2.378
  Maximum power(KW)	160
  Maximum torque(N.m)	320
  Revolutions of maximum power(rpm)	5600
  Revolutions of maximum torquer(rpm)	2000-4000
  Type of transmission	6MT
  Type of fuel	gasoline

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	●
  Tire pressure monitoring system	●
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	●
  Faux leather steering wheel	—
  Real steering wheel	●
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	●
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	—
  Premium leather-wrapped seats	●
  Driver seat (6-way)	●
  Number of the speakers	4
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	●
  Body-color door handles	—
  Electroplated door handles	●
  Electroplated rear view mirrors	●
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	—
  P235 tires	●
  4WD LOGO at the end	●
  4x4 logo below outside rear view mirrors	●
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• 5Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	150
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	1915
  Gross mass(kg)	2890

• Engine

  close

  Engine model	JE4D25Q6A(guo VIA)
  Engine type	The water cooled inline-four cylinder turbo-charged Common Rail engine
  Engine displacement（L）	2.499
  Maximum power(KW)	110
  Maximum torque(N.m)	360
  Revolutions of maximum power(rpm)	3600
  Revolutions of maximum torquer(rpm)	1400-2800
  Type of transmission	6MT
  Type of fuel	柴油

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	—
  Tire pressure monitoring system	—
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	—
  Faux leather steering wheel	●
  Real steering wheel	—
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	—
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	●
  Premium leather-wrapped seats	—
  Driver seat (6-way)	●
  Number of the speakers	2
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	—
  Body-color door handles	●
  Electroplated door handles	—
  Electroplated rear view mirrors	—
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	●
  P235 tires	—
  4WD LOGO at the end	—
  4x4 logo below outside rear view mirrors	—
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• 6Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	150
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	1915
  Gross mass(kg)	2890

• Engine

  close

  Engine model	JE4D25Q6A(guo VIA)
  Engine type	The water cooled inline-four cylinder turbo-charged Common Rail engine
  Engine displacement（L）	2.499
  Maximum power(KW)	110
  Maximum torque(N.m)	360
  Revolutions of maximum power(rpm)	3600
  Revolutions of maximum torquer(rpm)	1400-2800
  Type of transmission	6MT
  Type of fuel	柴油

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	—
  Tire pressure monitoring system	●
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	●
  Faux leather steering wheel	—
  Real steering wheel	●
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	●
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	—
  Premium leather-wrapped seats	●
  Driver seat (6-way)	●
  Number of the speakers	4
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	—
  Body-color door handles	—
  Electroplated door handles	●
  Electroplated rear view mirrors	●
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	●
  P235 tires	—
  4WD LOGO at the end	—
  4x4 logo below outside rear view mirrors	—
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• 7Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	150
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	2005
  Gross mass(kg)	2980

• Engine

  close

  Engine model	JE4D25Q6A(guo VIA)
  Engine type	The water cooled inline-four cylinder turbo-charged Common Rail engine
  Engine displacement（L）	2.499
  Maximum power(KW)	110
  Maximum torque(N.m)	360
  Revolutions of maximum power(rpm)	3600
  Revolutions of maximum torquer(rpm)	1400-2800
  Type of transmission	6MT
  Type of fuel	柴油

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	●
  Tire pressure monitoring system	—
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	—
  Faux leather steering wheel	●
  Real steering wheel	—
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	—
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	●
  Premium leather-wrapped seats	—
  Driver seat (6-way)	●
  Number of the speakers	2
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	●
  Body-color door handles	●
  Electroplated door handles	—
  Electroplated rear view mirrors	—
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	—
  P235 tires	●
  4WD LOGO at the end	●
  4x4 logo below outside rear view mirrors	●
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.

• 8Specifications

  close

  Dimension: length x width x height(mm)	5570*1840*1805
  Dimension of the cargo box(mm)	1815*1520*480
  Wheel base（mm）	3385
  Wheel track (front/rear)（mm）	1528/1528
  Seating capacity (person)	2+3
  Approaching angle/ departure angle	32/26
  Minimum ground clearance	215
  Maximum speed(km/h)	150
  Fuel tank capacity	70
  Maximum payload	650
  Curb weight(kg)	2005
  Gross mass(kg)	2980

• Engine

  close

  Engine model	JE4D25Q6A(guo VIA)
  Engine type	The water cooled inline-four cylinder turbo-charged Common Rail engine
  Engine displacement（L）	2.499
  Maximum power(KW)	110
  Maximum torque(N.m)	360
  Revolutions of maximum power(rpm)	3600
  Revolutions of maximum torquer(rpm)	1400-2800
  Type of transmission	6MT
  Type of fuel	柴油

• Safety Devices

  close

  Double airbags	●
  Child safety locks on rear doors	●
  Front load-limiters adjustable seat belt	●
  Anti-collision bars built in four doors	●
  high mount stop lights	●
  ABS+EBD	●
  Front disc brakes/ Rear drum brakes	●
  Rear locking differential	●
  Tire pressure monitoring system	●
  Speed-sensing door lock	●
  Doors automatically unlocked after the collision	●
  Parking distance control	●

• Functions

  close

  power steering	●
  Power windows on four doors	●
  Power rear vision mirror with turn signals	●
  Power door locks	●
  Folding remote key fob(single)	●
  Electric adjustable headlamps	●
  Top-mounted glasses case & Front reading light	●
  Anti-dazzle indoor mirror	●
  Cruise control	●
  Faux leather steering wheel	—
  Real steering wheel	●
  multifunctional steering wheel	●
  Steering Wheel Adjustment	●
  Voice control	●
  Control screen	●
  Electronic clock	●
  Seats of woven fabric	—
  Premium leather-wrapped seats	●
  Driver seat (6-way)	●
  Number of the speakers	4
  Metallic paint	●

• Appearance

  close

  LED Head lamps	●
  LED Daytime running lamps	●
  Front fog lamps	●
  Body-color door handles	—
  Electroplated door handles	●
  Electroplated rear view mirrors	●
  Cargo box guard bar	●
  Ropes and hooks in the cargo box	●
  Bed liner	●
  Pedals at the both sides	●
  17“ wheel hubs	●
  Ordinary tires	—
  P235 tires	●
  4WD LOGO at the end	●
  4x4 logo below outside rear view mirrors	●
  The specification of tires	235/65R17
  Remarks	1、● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  	2、Dandong Huanghai Automobile Co., Ltd. reserves the right of final interpretation for configuration upon disputes and ambiguities.
