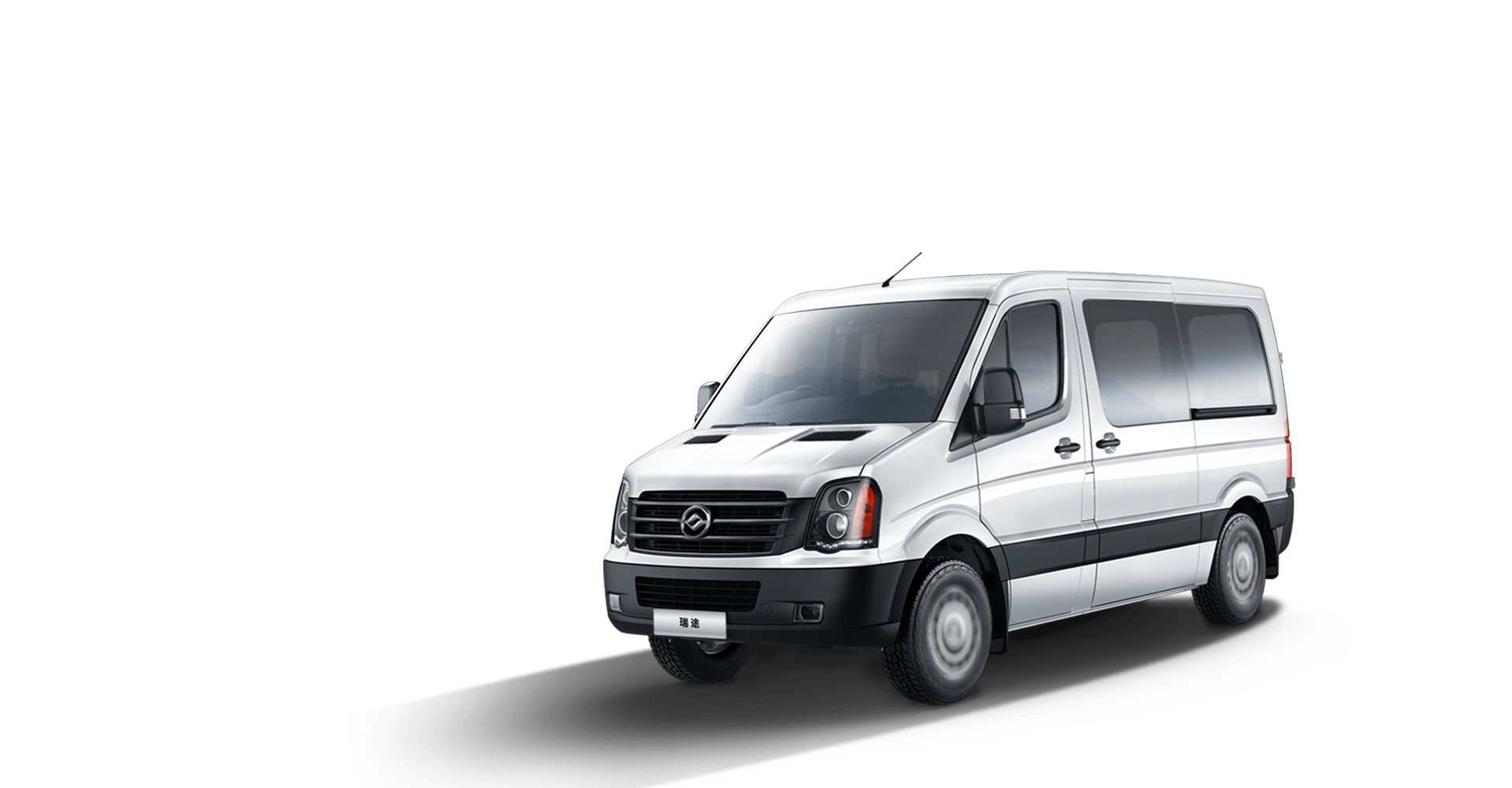

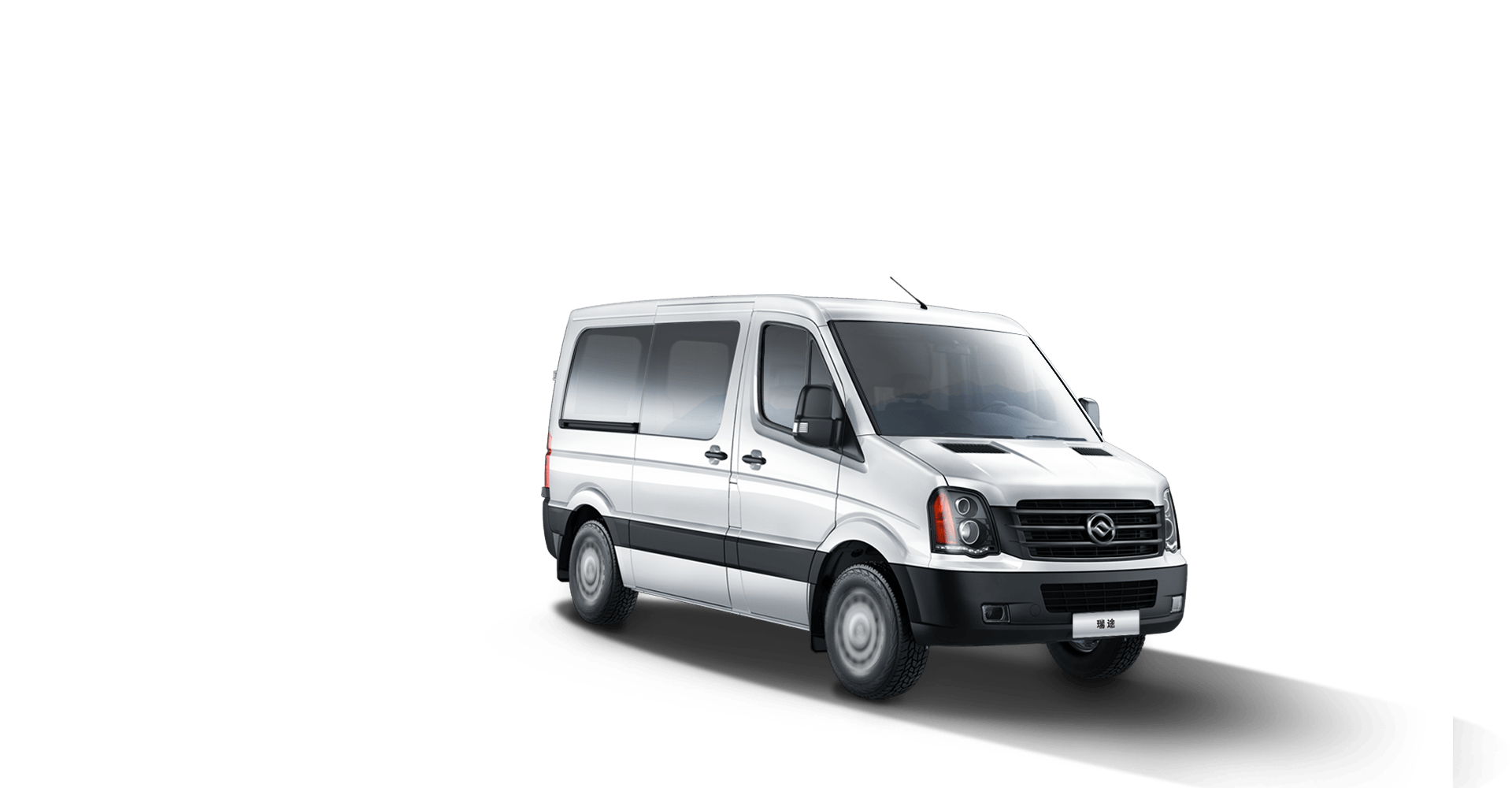

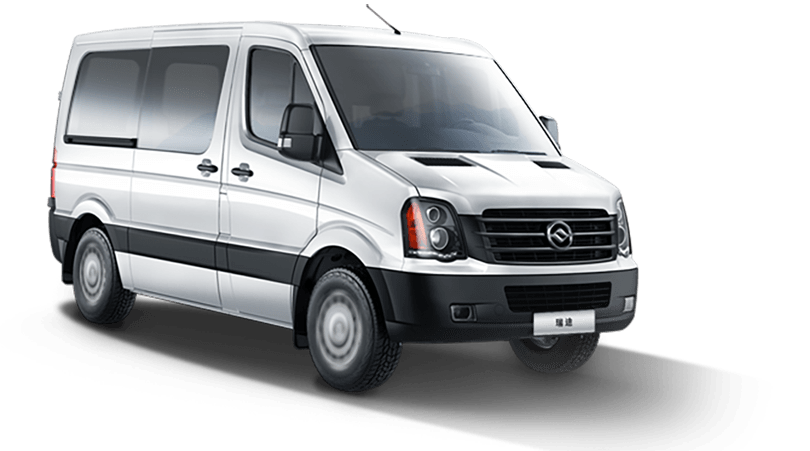

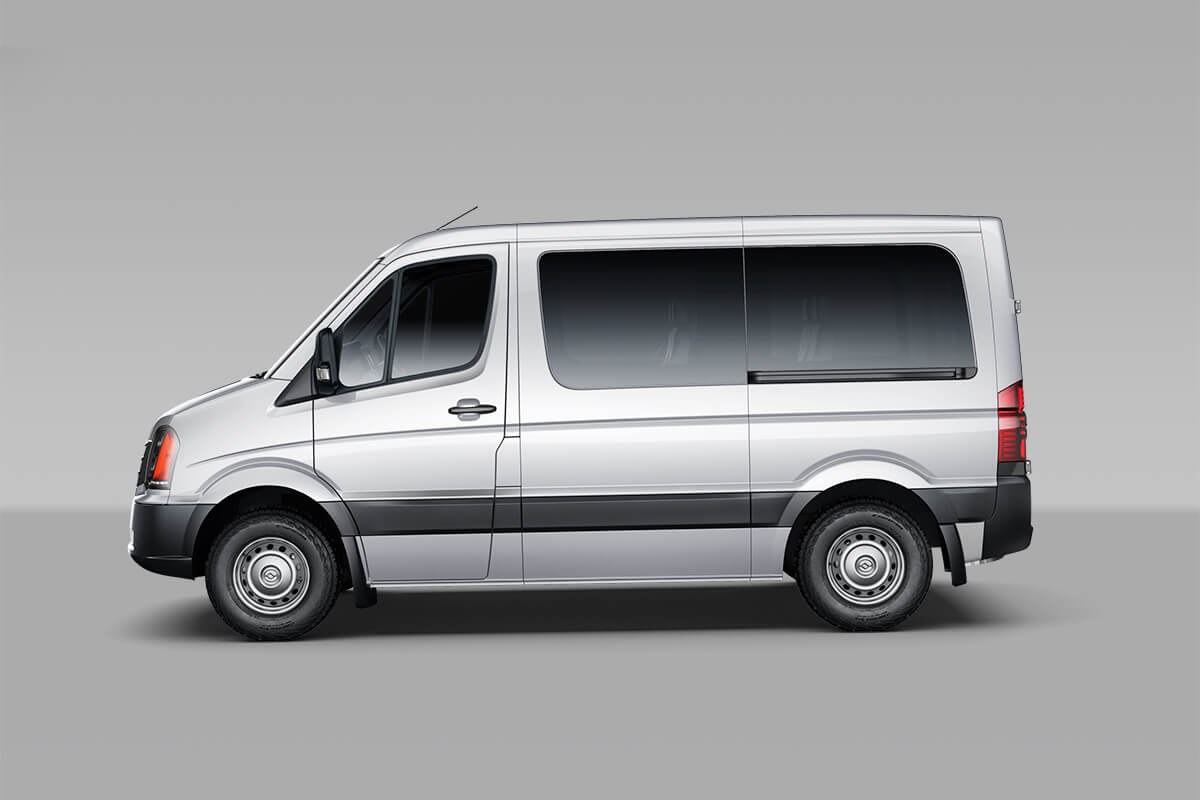

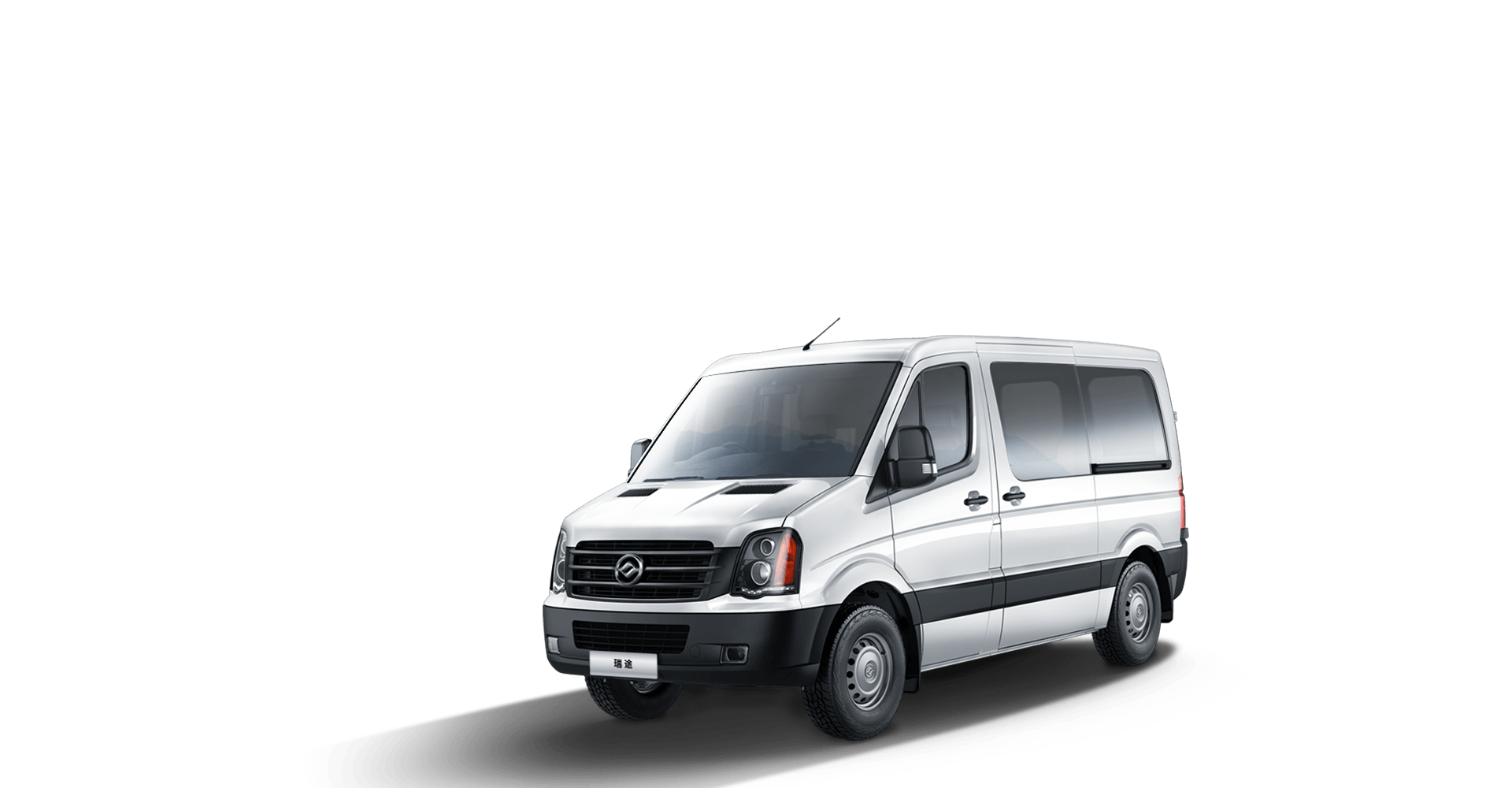

Huanghai Raytour Business version
Engine
YUCHAI2.0L National-V Turbocharged Diesel Engines
Engine displacement（L）
2
  • Parameters
    close
    Dimension(length/width/height (mm)) 5295（5380）/2025/2375
    Wheel base(mm) 3300
    Seating capacity 12 11
    Maximum gross mass(kg) 3960
    Curb weight(kg) 2460
    Maximum payload(kg) -
    Cargo space(length/width/height (mm)) -
    Fuel consumption(l/100km) 10
    Fuel tank capacity 80
    Rear axle ratio(4.1） ● ●
    Rear axle ratio(4.875） × ×
    Maximum speed(km/h) 135/125
  • Powertrain
    close
    Model YC4Y20
    Emission standard National-V+SCR
    Engine displacement(L) 2
    Power rating/revolutions(kW/rpm) 90/3600
    Maximum torque revolutions(N.m/rpm) 280/1600-2400
    Gearbox ZM035
  • Appearance & Design
    close

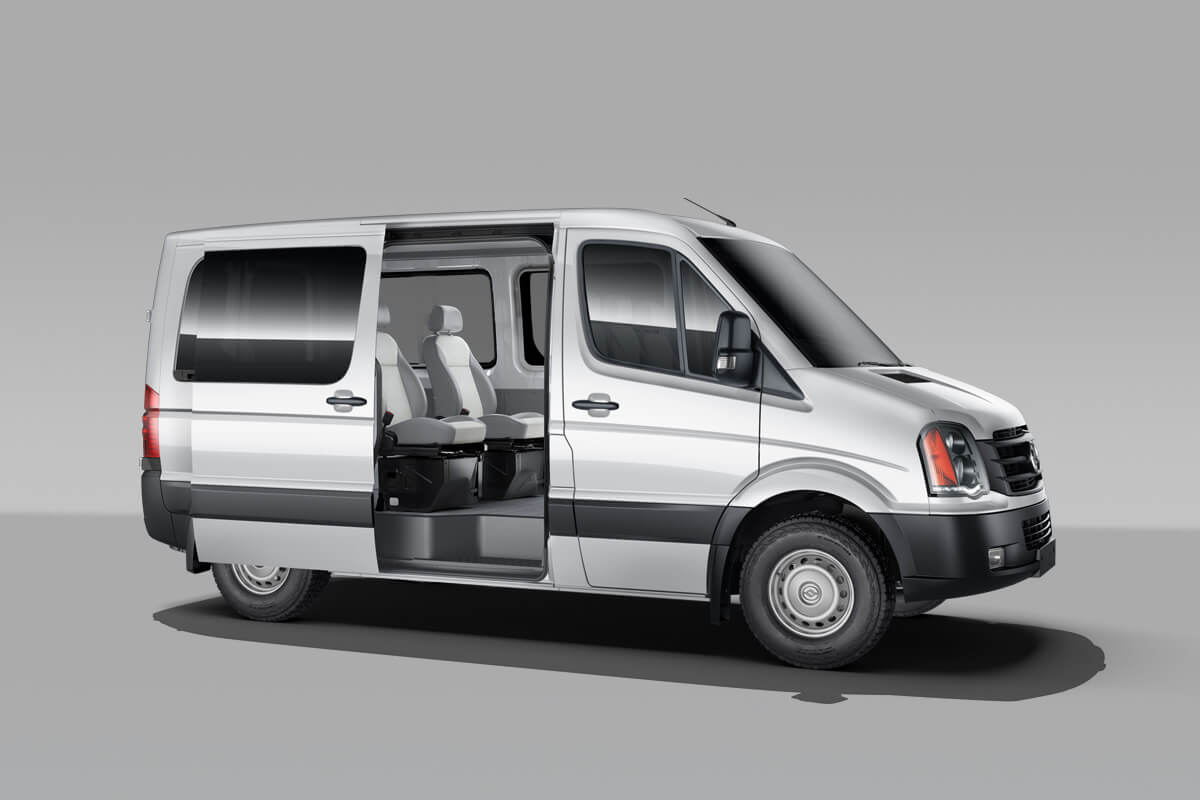

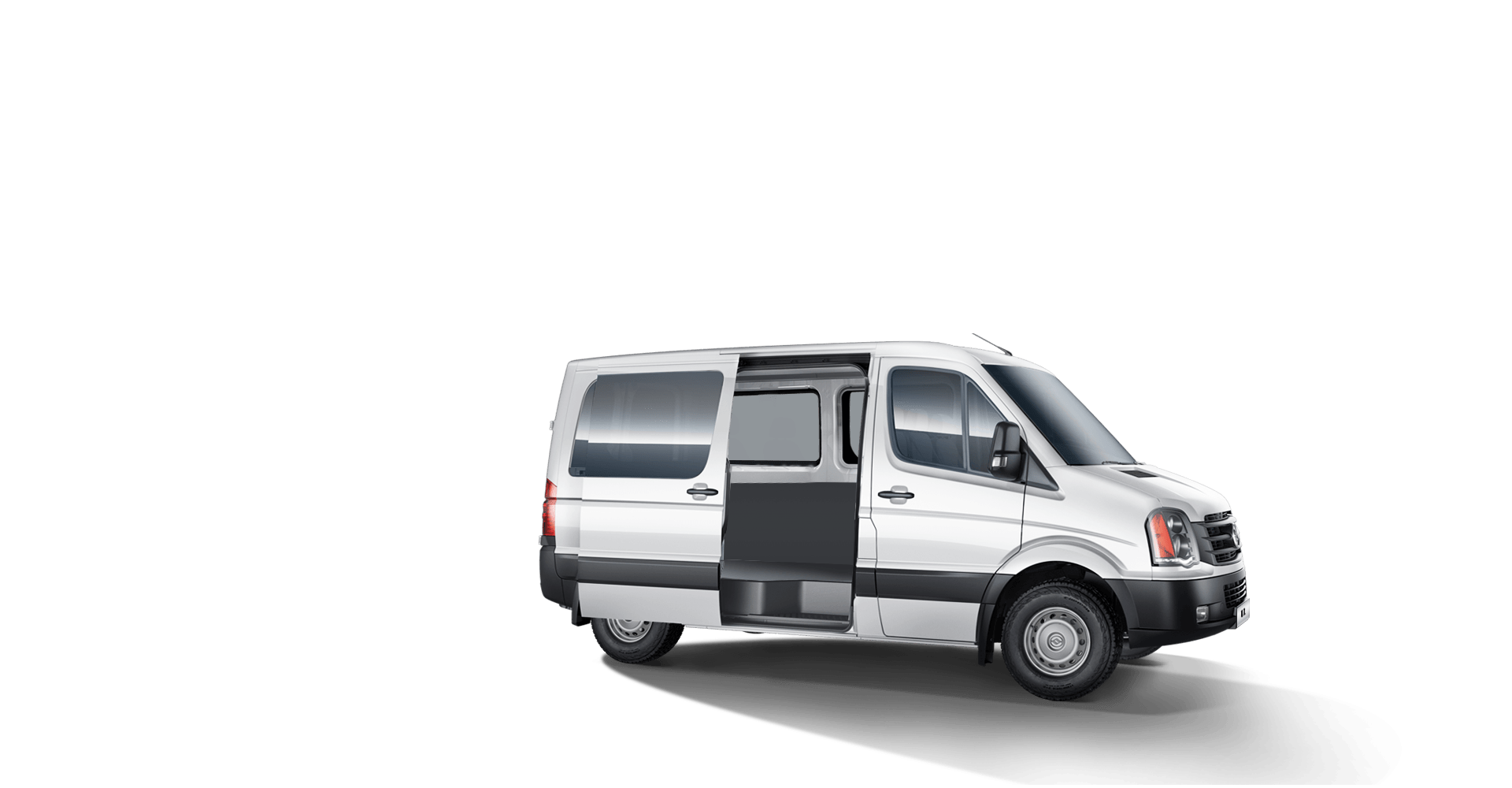

    Sliding doors ● ×
    Integrated side windows ● ●
    White glass ● ●
    Push-pull side windows(white glass)(front) ○ ○
    Push-pull side windows(white glass)(rear) ○ ○
    Push-pull side windows(white glass)(entire) ○ ○

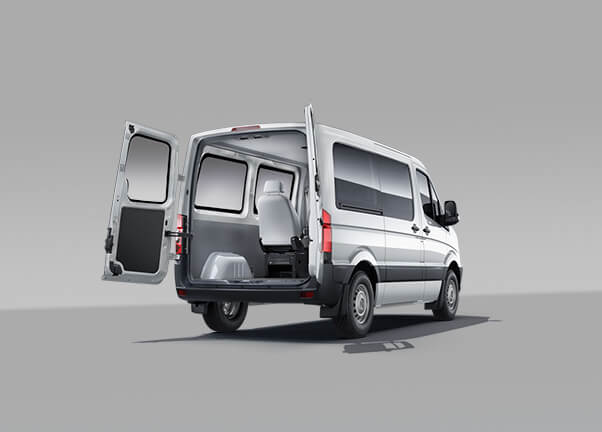

    Double-wing rear doors ● ●
    Power door locks ● ●
    Front power windows ● ●
    Outside rear view mirrors (electric-controlled and heated mirrors) ● ●
    Aluminum alloy wheels ○ ○
    Steel wheels ● ●
    Wheel trims (large) ○ ○
    Wheel trims (small) ○ ○
    Full-size spare tire (steel) ● ●
    Loud speakers ● ●
    Woofers ● ●
    Chrome-plated grille（2015） ○ ○
    Black grille（2015） ● ●
  • Safety & Theft-Prevention
    close
    Front disc brakes/Rear drum brakes ● ●
    Kit for three-point seat belts (with pre-tensioners and load-limiters) on front seats ○（Security package） ○（Security package）
    Three-point seat belts on front seats (ELR) ● ●
    Rear seat belts (two-point) ● ●
    Rear seat belts (three-point) × ×
    Seat belt warning for the driver ● ●
    The whole vehicle is equipped with electronic anti-theft devices ● ●
    High mount stop lights ● ●
    Speed-sensing door lock ● ●
    Doors automatically unlocked after the flameout ● ●
    Front fog lamps ○（Security package） ○（Security package）
    Parking distance control ○（Security package） ○（Security package）
    ABS+EBD ● ●
    Indicator that the key fob is left behind ● ●
    Indicator that the front lamps are still switched on ● ●

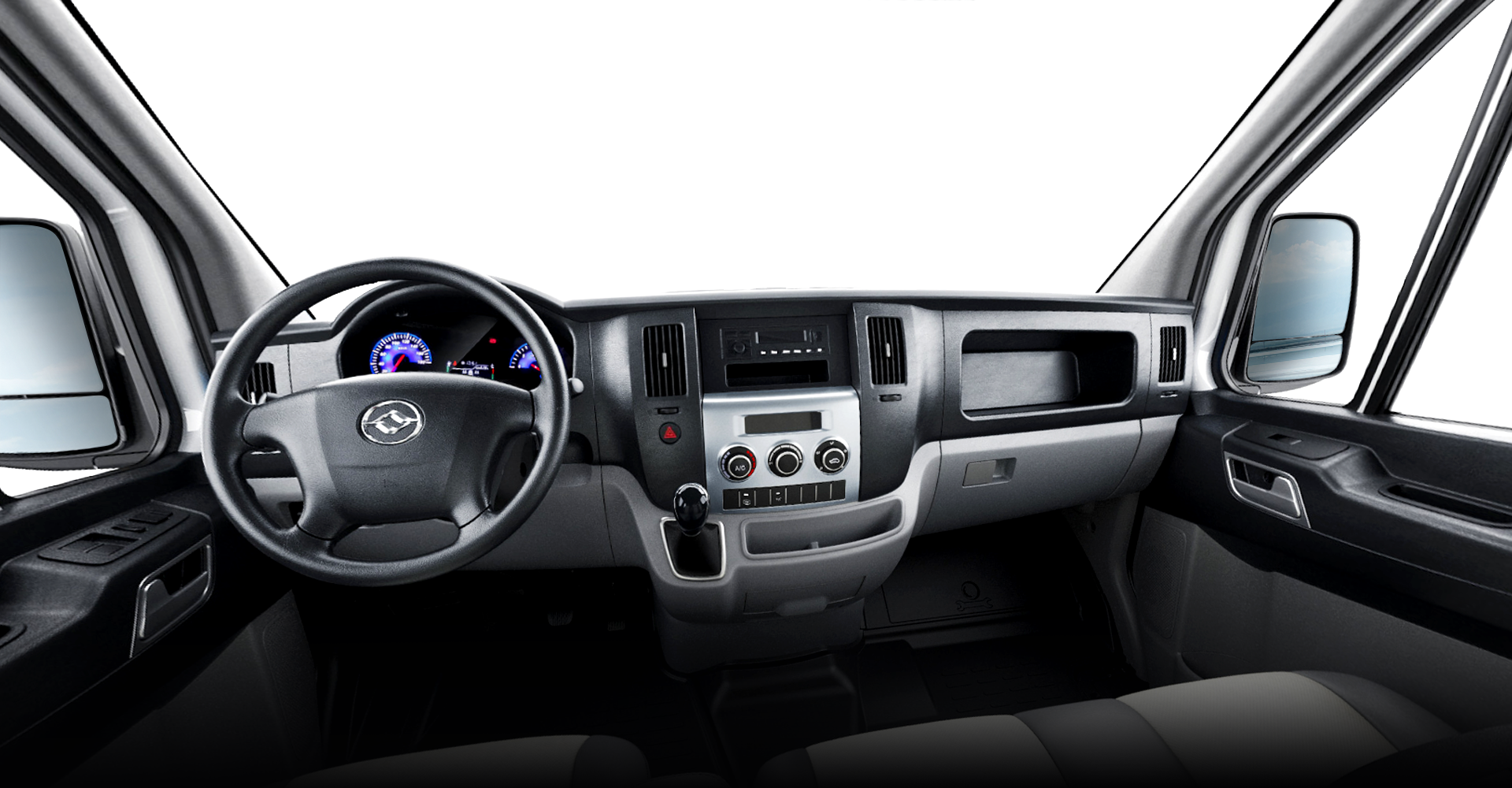

  • Experience
    close
    Front AC ● ●
    Rear AC ● ●
    Rear vents for warm air ● ●
    Nylon mesh filter at the inlet of AC ● ●
    Pollen filter at the inlet of AC ○ ○
    Adjustable driver seat (six-way) ● ●
    Sun shade × ×
    Remote, folding key fob ● ●
    Electronic clock ● ●
    Seats of woven fabric ● ●
    Leather-wrapped seats ○ ○
    Premium leather-wrapped seats ○ ○
    B-pillar handrail ● ×
    Upper handrail on the right front door × ●
    Handrail on the right front ceiling ● ×
    MP3+Radio ● ●
    MP5+Navigation+Parking distance control+Radio ○（Comfort bag） ○（Comfort bag）
    Tire pressure monitoring system × ×
    Dashboard camera × ×
    Speakers on the dashboard (each at the left and right side) × ×
    Speakers on the front doors (each at the left and right side) ● ●
    Speakers on the side walls (each at the left and right side) ● ●
    Interior cabin lamp (one) ● ●
    Fuel-assisted heating system ○ ○
  • Functions
    close
    The CAN bus system for central error diagnosis ● ●
    Instantaneous fuel consumption display ● ●
    Mileage display ● ●
    Running board × ×
    Cargo hooks × ×
    D-pillar handrail × ×
    Van partitions × ×
    Side fenders for trucks (honeycomb pattern) × ×
    Side fenders for passenger car (below) ● ●
    Side fenders for passenger car (ABS plastic) ● ●
    Simple ceiling (for the delivery version) × ×
    Remarks: "●" means Standard;"○" means Available;"×" means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  • Parameters
    close
    Dimension(length/width/height (mm)) 5295（5380）/2025/2375
    Wheel base(mm) 3300
    Seating capacity 5-9
    Maximum gross mass(kg) 3595
    Curb weight(kg) 2455
    Maximum payload(kg) -
    Cargo space(length/width/height (mm)) -
    Fuel consumption(l/100km) 10.4
    Fuel tank capacity 80
    Rear axle ratio(4.1） × ×
    Rear axle ratio(4.875） ● ●
    Maximum speed(km/h) 125/135
  • Powertrain
    close
    Model YC4Y20
    Emission standard National-V+SCR
    Engine displacement(L) 2
    Power rating/revolutions(kW/rpm) 90/3600
    Maximum torque revolutions(N.m/rpm) 280/1600-2400
    Gearbox ZM035
  • Appearance & Design
    close
    Sliding doors ● ×
    Integrated side windows ● ●
    White glass ● ●
    Push-pull side windows(white glass)(front) ○ ○
    Push-pull side windows(white glass)(rear) ○ ○
    Push-pull side windows(white glass)(entire) ○ ○
    Double-wing rear doors ● ●
    Power door locks ● ●
    Front power windows ● ●
    Outside rear view mirrors (electric-controlled and heated mirrors) ● ●
    Aluminum alloy wheels ○ ○
    Steel wheels ● ●
    Wheel trims (large) ○ ○
    Wheel trims (small) ○ ○
    Full-size spare tire (steel) ● ●
    Loud speakers ● ●
    Woofers × ×
    Chrome-plated grille（2015） × ×
    Black grille（2015） ● ●
  • Safety & Theft-Prevention
    close
    Front disc brakes/Rear drum brakes ● ●
    Kit for three-point seat belts (with pre-tensioners and load-limiters) on front seats ○（Security package） ○（Security package）
    Three-point seat belts on front seats (ELR) ● ●
    Rear seat belts (two-point) × ×
    Rear seat belts (three-point) ● ●
    Seat belt warning for the driver ● ●
    The whole vehicle is equipped with electronic anti-theft devices ● ●
    High mount stop lights ● ●
    Speed-sensing door lock ● ●
    Doors automatically unlocked after the flameout ● ●
    Front fog lamps ○（Security package） ○（Security package）
    Parking distance control ○（Security package） ○（Security package）
    ABS+EBD ● ●
    Indicator that the key fob is left behind ● ●
    Indicator that the front lamps are still switched on ● ●
  • Experience
    close
    Front AC ● ●
    Rear AC × ×
    Rear vents for warm air × ×
    Nylon mesh filter at the inlet of AC ● ●
    Pollen filter at the inlet of AC × ×
    Adjustable driver seat (six-way) ● ●
    Sun shade × ×
    Remote, folding key fob × ×
    Electronic clock × ×
    Seats of woven fabric ● ●
    Leather-wrapped seats × ×
    Premium leather-wrapped seats × ×
    B-pillar handrail ● ×
    Upper handrail on the right front door × ×
    Handrail on the right front ceiling ● ×
    MP3+Radio ● ●
    MP5+Navigation+Parking distance control+Radio × ×
    Tire pressure monitoring system × ×
    Dashboard camera × ×
    Speakers on the dashboard (each at the left and right side) × ×
    Speakers on the front doors (each at the left and right side) ● ●
    Speakers on the side walls (each at the left and right side) × ×
    Interior cabin lamp (one) ● ●
    Fuel-assisted heating system × ×
  • Functions
    close
    The CAN bus system for central error diagnosis ● ●
    Instantaneous fuel consumption display ● ●
    Mileage display ● ●
    Running board ○ ○
    Cargo hooks × ×
    D-pillar handrail × ×
    Van partitions × ×
    Side fenders for trucks (honeycomb pattern) × ×
    Side fenders for passenger car (below) ● ●
    Side fenders for passenger car (ABS plastic) × ×
    Simple ceiling (for the delivery version) ● ●
    Remarks: "●" means Standard;"○" means Available;"×" means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
  • Parameters
    close
    Dimension(length/width/height (mm)) 5295（5380）/2025/2375
    Wheel base(mm) 3300
    Seating capacity 3 3
    Maximum gross mass(kg) 3960
    Curb weight(kg) 2250
    Maximum payload(kg) 1515
    Cargo space(length/width/height (mm)) 2615/1775/1630
    Fuel consumption(l/100km) 10.6
    Fuel tank capacity 80
    Rear axle ratio(4.1） × ×
    Rear axle ratio(4.875） ● ●
    Maximum speed(km/h) 125/135
  • Powertrain
    close
    Model YC4Y20
    Emission standard National-V+SCR
    Engine displacement(L) 2
    Power rating/revolutions(kW/rpm) 90/3600
    Maximum torque revolutions(N.m/rpm) 280/1600-2400
    Gearbox ZM035
  • Appearance & Design
    close
    Sliding doors ● ×
    Integrated side windows × ×
    White glass × ×
    Push-pull side windows(white glass)(front) × ×
    Push-pull side windows(white glass)(rear) × ×
    Push-pull side windows(white glass)(entire) × ×
    Double-wing rear doors ● ●
    Power door locks ● ●
    Front power windows ● ●
    Outside rear view mirrors (electric-controlled and heated mirrors) ● ●
    Aluminum alloy wheels × ×
    Steel wheels ● ●
    Wheel trims (large) ○ ○
    Wheel trims (small) ○ ○
    Full-size spare tire (steel) ● ●
    Loud speakers ● ●
    Woofers × ×
    Chrome-plated grille（2015） × ×
    Black grille（2015） ● ●
  • Safety & Theft-Prevention
    close
    Front disc brakes/Rear drum brakes ● ●
    Kit for three-point seat belts (with pre-tensioners and load-limiters) on front seats ○（Security package） ○（Security package）
    Three-point seat belts on front seats (ELR) ● ●
    Rear seat belts (two-point) × ×
    Rear seat belts (three-point) × ×
    Seat belt warning for the driver ● ●
    The whole vehicle is equipped with electronic anti-theft devices ● ●
    High mount stop lights ● ●
    Speed-sensing door lock ● ●
    Doors automatically unlocked after the flameout ● ●
    Front fog lamps ○（Security package） ○（Security package）
    Parking distance control ○（Security package） ○（Security package）
    ABS+EBD ● ●
    Indicator that the key fob is left behind ● ●
    Indicator that the front lamps are still switched on ● ●
  • Experience
    close
    Front AC ● ●
    Rear AC × ×
    Rear vents for warm air × ×
    Nylon mesh filter at the inlet of AC ● ●
    Pollen filter at the inlet of AC × ×
    Adjustable driver seat (six-way) ● ●
    Sun shade × ×
    Remote, folding key fob × ×
    Electronic clock × ×
    Seats of woven fabric ● ●
    Leather-wrapped seats × ×
    Premium leather-wrapped seats × ×
    B-pillar handrail × ×
    Upper handrail on the right front door × ×
    Handrail on the right front ceiling ● ×
    MP3+Radio ● ●
    MP5+Navigation+Parking distance control+Radio × ×
    Tire pressure monitoring system × ×
    Dashboard camera × ×
    Speakers on the dashboard (each at the left and right side) × ×
    Speakers on the front doors (each at the left and right side) ● ●
    Speakers on the side walls (each at the left and right side) × ×
    Interior cabin lamp (one) ● ●
    Fuel-assisted heating system × ×
  • Functions
    close
    The CAN bus system for central error diagnosis ● ●
    Instantaneous fuel consumption display ● ●
    Mileage display ● ●
    Running board ○ ○
    Cargo hooks × ×
    D-pillar handrail × ×
    Van partitions ● ●
    Side fenders for trucks (honeycomb pattern) ●(Side wall lower guard plate) ●(Side wall lower guard plate)
    Side fenders for passenger car (below) × ×
    Side fenders for passenger car (ABS plastic) × ×
    Simple ceiling (for the delivery version) ● ●
    Remarks: "●" means Standard;"○" means Available;"×" means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
