Three types of spreader (type A, type B and type C) are optional for installation. With the type A or type B spreaders installed, rear overhang: 2780mm, total vehicle length: 10085mm, total vehicle height:3490mm; With the type C spreader installed, rear overhang: 2600mm, total vehicle length: 9905mm, total vehicle height: 3150mm; Front snow shovel and center snow roller brush are optional for installation; With front snow shovel (required during snow cleaning operation) installed, front overhang: 2000mm; With front snow shovel and type A / type B spreader installed, total vehicle length:12085mm; With front snow shovel and type C spreader installed, total vehicle length: 11905mm; Side protection: Q235A, bolt connection; Rear protection: Q235A, bolt connection, section size: 120mm x 50mm, ground clearance: 415mm; ABS model: 4460046300; ABS manufacturer: WABCO Vehicle Control Systems (China) Co., Ltd.; Equipped with a satellite positioning driving recorder.
Specifications

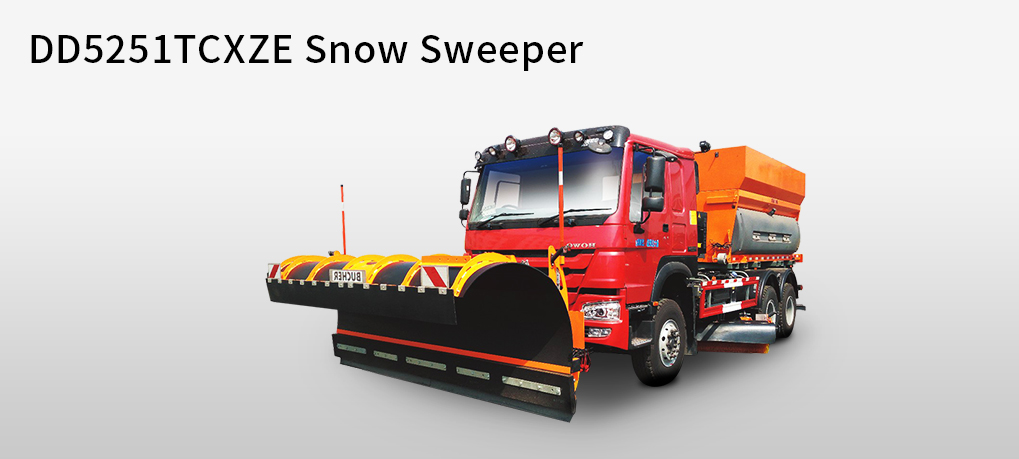

Name DD5251TCXZE Snowplow
Size: L x W x H(mm) 12085,11905,10085,9905X2496x3490,3150
Cargo compartment dimension(mm) -
G.V.W.(kg)(kg) 25000
Curb mass(kg) 15100
Rated loadkg) 9770
Wheel base(mm) 4125+1350
Number of axles 3
ABS have
Approaching angle/ departure angle 15/9
Front & rear overhang(mm) 1830/2780,1830/2600
Maximum speed(km/h) 82
Tire number 10
The specification of tires 12.00R2016PR,11.00R20,12.00-2018PR,11.00-20
Front track 2022,2041
Rear track 1830/1830
Oil consumption rate(L/100Km) -
Emission standard GB17691-2005 guo V .GB3847-2005
