Various parts are optional for installation on the chassis. A front mounting bracket is installed on the front of the vehicle. With the snow shovel (required during snow cleaning operation) installed, front overhang: 890mm, total vehicle length: 9485mm; With the snow roller brush (required during snow cleaning operation) installed, front overhang: 1340mm, total vehicle length: 9935mm, rear spreader is optional for installation. Side protection: Q235A, bolt connection; Rear protection: Q235A, bolt connection, section size:50x120mm, ground clearance: 510mm; Equipped with a satellite positioning driving recorder; Wheelbase: 3800mm; ABS is optional for installation; ABS model: 3631010- C2000,4460046440; ABS manufacturer: Dongke Knorr Commercial Vehicle Brake Systems (Shiyan) Co., Ltd., WABCO Vehicle Control Systems (China) Co., Ltd.
Specifications

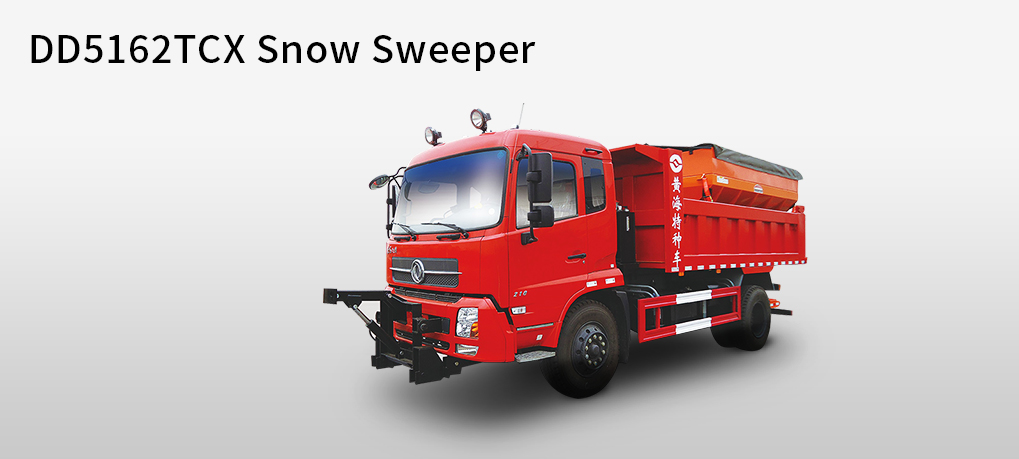

Name DD5162TCX Snowplow
Size: L x W x H(mm) 9935,9485,859 x2496x3350
Cargo compartment dimension(mm) -
G.V.W.(kg)(kg) 15800
Curb mass(kg) 9940
Rated loadkg) 5665
Wheel base(mm) 3800,4200,4500,4700,5000
Number of axles 2
ABS have
Approaching angle/ departure angle 12/9
Front & rear overhang(mm) 2330/2465
Maximum speed(km/h) 90
Tire number 6
弹簧片数 7/9+6,8/10+8
Front track 1880,1900,1920
Rear track 1800,1860,1820
Oil consumption rate(L/100Km) -
Emission standard -
