A front mounting bracket is installed on the front of the vehicle. With the power unit installed, total vehicle length: 5610mm, total vehicle height:1960mm; With the spreader (optional) installed, total vehicle length: 6540mm, rear overhang: 930mm, total vehicle height: 1840mm; With the snow shovel and the power unit (required during snow cleaning operation) installed, total vehicle length: 6650 mm, front overhang: 1040mm, total vehicle height: 1960mm; With the snow shovel and the spreader (required during snow cleaning operation) installed, total vehicle length:7580mm, front overhang: 1040mm, rear overhang: 930mm, total vehicle height: 1840mm; With the snow roller brush and the power unit (required during snow cleaning operation) installed, total vehicle length: 7250 mm, front overhang: 1640 mm, total vehicle height: 1960 mm; Side footboard, wheel rim and front grille are optional for installation. The maximum net power of the engine: 99 kW.
Specifications

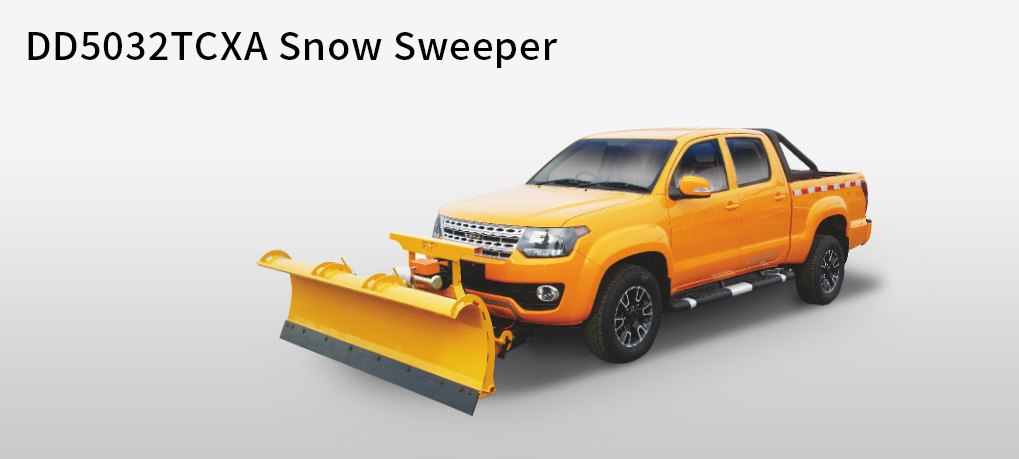

Name DD5032TCXA Snowplow For work
Size: L x W x H(mm) 7580,7250,6650,6540,5610x1840x1960,1840
Cargo compartment dimension(mm) -
G.V.W.(kg)(kg) 2735
Curb mass(kg) 2360
Rated loadkg) 50
Wheel base(mm) 3405
Number of axles 2
ABS nothing
Approaching angle/ departure angle 13/26
Front & rear overhang(mm) 945/1260
Maximum speed(km/h) 150
Tire number 4
The specification of tires 245/65R17,265/65R17
Front track 1538,1548
Rear track 1538,1548
Oil consumption rate(L/100Km) -
Emission standard GB18352.5-2013 Guo V
