A front mounting bracket is installed on the front of the vehicle. With the snow shovel (required during snow cleaning operation) installed, front overhang: 1330mm, total vehicle length: 6690mm; With the snow roller brush (required during snow cleaning operation) installed, front overhang: 1520mm, total vehicle length: 7130mm; Side footboard, wheel rim and front grille are optional for installation. The maximum net power of the engine: 99 kW.
Specifications

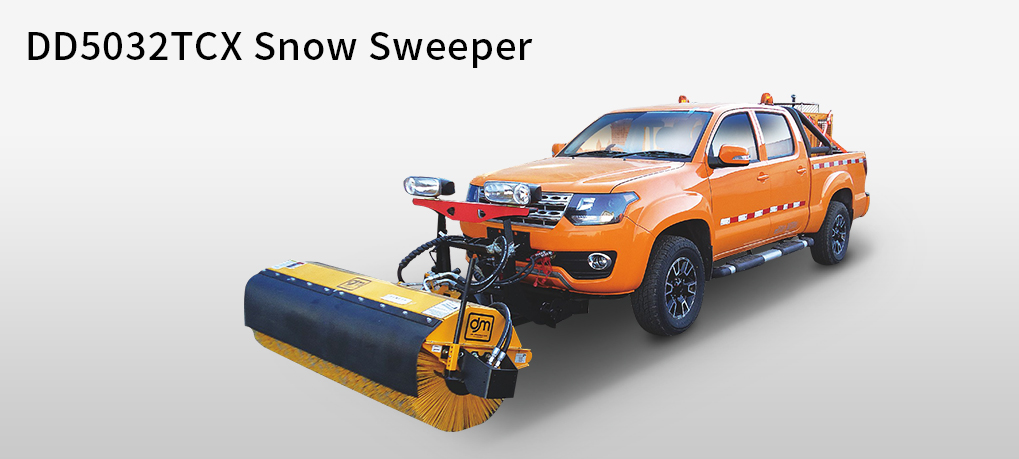

Name DD5032TCX Snowplow
Size: L x W x H(mm) 7130,6690,5610x1840x1990
Cargo compartment dimension(mm) -
G.V.W.(kg)(kg) 2735
Curb mass(kg) -
Rated loadkg) -
Wheel base(mm) 3405
Number of axles 2
ABS nothing
Approaching angle/ departure angle 32/26
Front & rear overhang(mm) 945/1260
Maximum speed(km/h) 150
Tire number 4
The specification of tires 245/65R17,265/65R17
Front track 1538,1548
Rear track 1538,1548
Oil consumption rate(L/100Km) -
Emission standard GB18352.5-2013 Guo V
