The following equipment is optional for installation: car refrigerator, microwave oven, hot water kettle, kitchenware, solar panels, outdoor lighting, plug-in water valve, overhead skylight, sanitary ware, RV bedding, body louver, TV, satellite antenna, external power supply, water pump (12V), generator, sunshade, etc; Besides, the door position, window position and parking air conditioning are also optional; Without parking air conditioning, the total vehicle height is 2800mm; The colors of the body side strips and the rear compartment can be different from that of the car body. Side footboard and wheel rim are optional for installation. The maximum net power of the engine: 99 kW.
Specifications

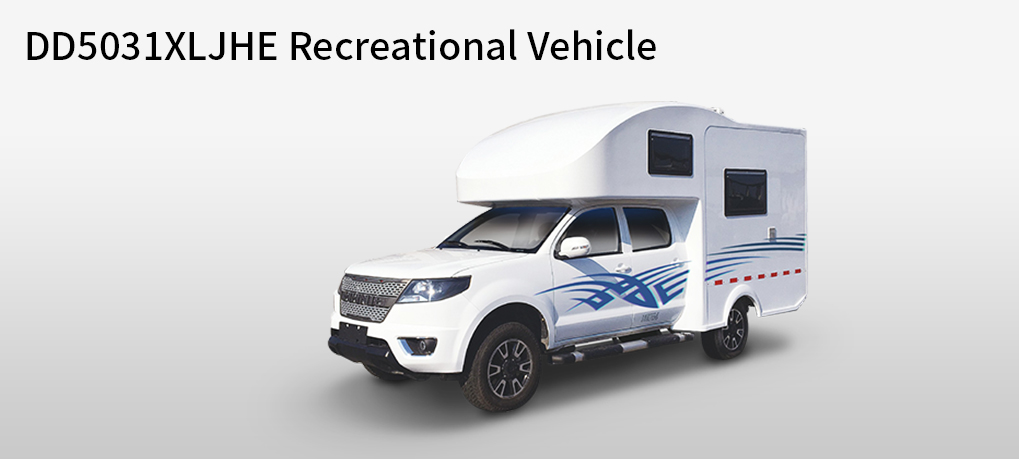

Name DD5031XLJHE Recreational Vehicle
Size: L x W x H(mm) 5995x2200x3050,2800
Cargo compartment dimension(mm) -
G.V.W.(kg)(kg) 3195
Curb mass(kg) 2850
Rated loadkg) -
Wheel base(mm) 3405
Number of axles 2
ABS nothing
Approaching angle/ departure angle 32/17.5
Front & rear overhang(mm) 895/1695
Maximum speed(km/h) 130
Tire number 4
The specification of tires 265/65R17
Front track 1538,1548
Rear track 1538,1548
Oil consumption rate(L/100Km) -
Emission standard GB18352.5-2013 Guo V
