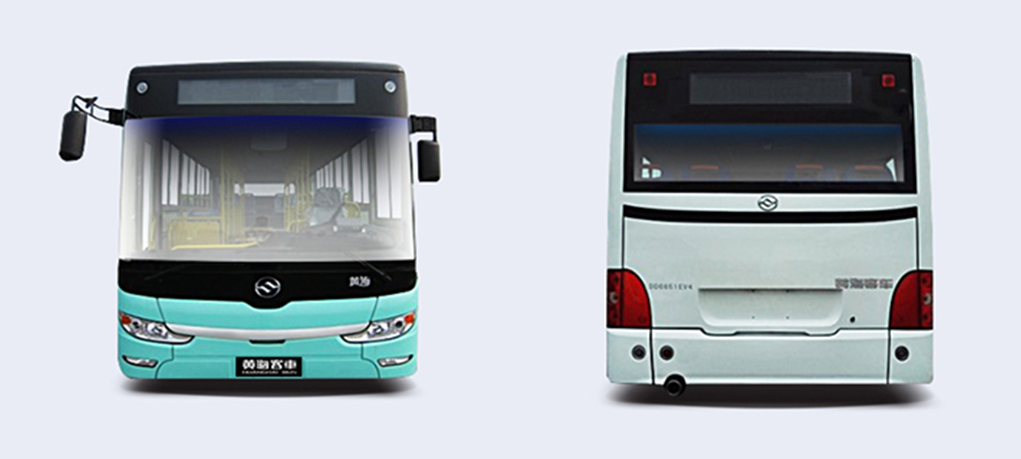

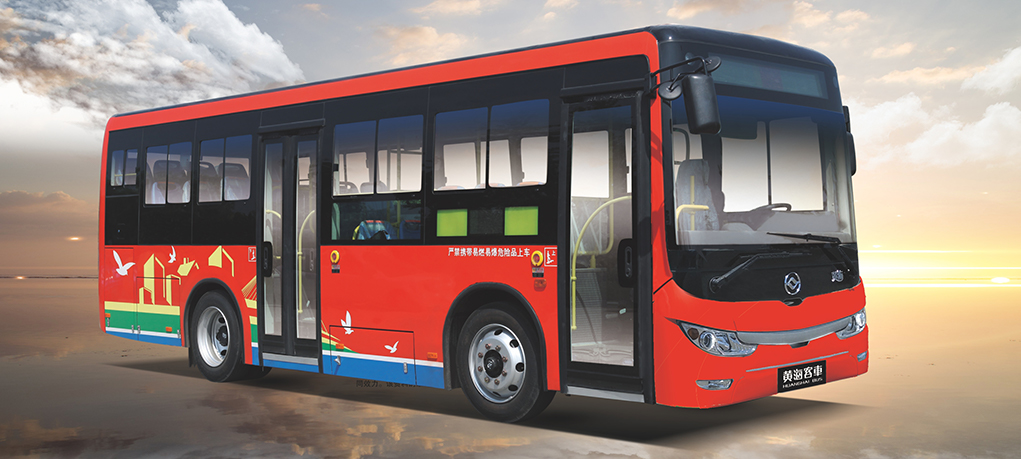

DD6851EV5 Electric city coach
8540×2430×3070/3170 Appearance (mm)
78，82/16-30 Rated seats
More
Huanghai DD6851EV5 Electric city coach adopts "blade" front wall, full load-bearing structure, lightweight design and Huanghai self-developed bus chassis. The adoption of the permanent magnet motor, lithium-ion battery and vehicle intelligent thermal management system reflects the concept of energy saving and environmental protection. The separation of passenger’s compartment, battery compartment and control compartment ensures driving safety. Long wheelbase and short front & rear overhang structure give the coach a larger interior space and stronger loading capacity. The intelligent remote monitoring system realizes the whole-life-cycle safety management of the coach.
Battery pack: lithium iron phosphate batteries/ Contemporary Amperex Technology Co., Limited (CATL).
Battery capacity：133.5kWh and 151.8kWh
Driving range under test condition (uniform velocity method) ≥280/320km
Specification
Dimension（mm） 8540×2430×3070/3170
Wheelbase（mm） 4000
Approach/departure angle(°) 7/7
Rated seats 78，82/16-30
Max. speed （km/h） 69
Battery capacity 133.5、151.8kWh（Lithium iron phosphate (LifePO)）
Motor model Jing-Jin
Suspension Leaf spring
G.V.W.(kg) 13500
Curb weight (kg) 8100/8400
Tire 255/70R22.5
Optional equipment Air conditioner, independent water heating system, public transport service equipment.
