DD6851EV5/EV6 Electric city coach
8500×2500×3080/3070 Appearance (mm)
70/16-27 or 57/16-27 Rated seats
More

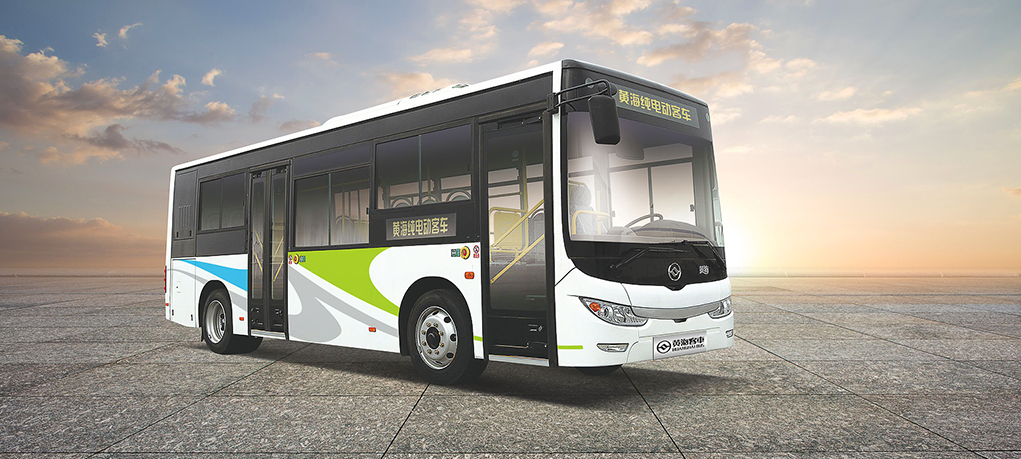

Huanghai DD6851EV5/EV6 Electric city coach adopts "blade" front wall, full load-bearing structure, lightweight design and Huanghai self-developed bus chassis. The adoption of the permanent magnet motor, lithium-ion battery and vehicle intelligent thermal management system reflects the concept of energy saving and environmental protection. The separation of passenger’s compartment, battery compartment and control compartment ensures driving safety. Long wheelbase and short front & rear overhang structure give the coach a larger interior space and stronger loading capacity. The intelligent remote monitoring system realizes the whole-life-cycle safety management of the coach.
Battery pack: lithium iron phosphate batteries/ Contemporary Amperex Technology Co., Limited (CATL).
Specification
Vehicle model DD6851EV5 DD6851EV6
Dimension（mm） 8540x2440,2500x3080,
3120,3200,3240		 8540x2500x3070,3130,
3220,3280
Wheelbase（mm） 4700
Approach/departure angle(°) 8/13
Rated seats 70/16-27 or 57/16-27
Max. speed （km/h） 69
G.V.W.(kg) 13700
Curb weight (kg) 8300,8800 8300,8600,9000
Battery capacity 133.50,151.8 180.4,210.5
Motor model lvkonGC-TM750-06 Auto Ekontrol EK1002050PMS1
Suspension Leaf spring
Tire 255/70R22.5
Optional equipment Air conditioner, independent water heating system, public transport service equipment.
