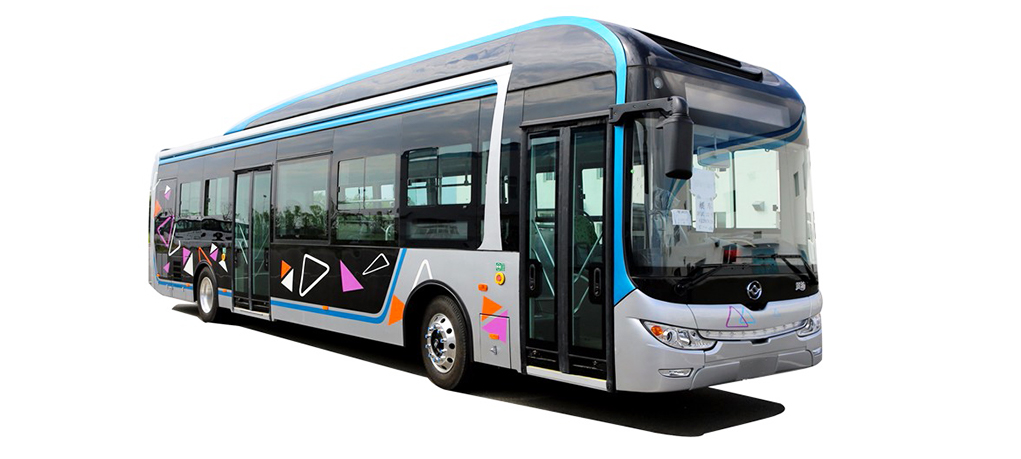

DD6129EV19 Electric city coach
12000×2532×3100/3270/3470 Appearance (mm)
80,81/24-38 Rated seats
More
Huanghai DD6129EV19 Electric city coachadopts "blade" front wall, full load-bearing structure, lightweight design and Huanghai self-developed bus chassis. The adoption of the permanent magnet motor, lithium-ion battery and vehicle intelligent thermal management system reflects the concept of energy saving and environmental protection. The separation of passenger’s compartment, battery compartment and control compartment ensures driving safety. Long wheelbase and short front & rear overhang structure give the coach a larger interior space and stronger loading capacity. The intelligent remote monitoring system realizes the whole-life-cycle safety management of the coach.
Battery pack: lithium iron phosphate batteries/ Contemporary Amperex Technology Co., Limited (CATL).
Battery capacity：303.6kWh
Driving range under test condition (uniform velocity method) ≥490km
Specification
Dimension（mm） 12000×2532×3100/3270/3470
Wheelbase（mm） 6250
Approach/departure angle(°) 8/8
Rated seats 88,81/24-38
Max. speed （km/h） 69
Battery capacity 303.6kWh（Lithium iron phosphate (LifePO)）
Motor model Prestolite Electric
Suspension Air Suspension system
G.V.W.(kg) 18000
Curb weight (kg) 12150/12600
Tire 275/70R22.5
Optional equipment Air conditioner, independent water heating system, public transport service equipment.
