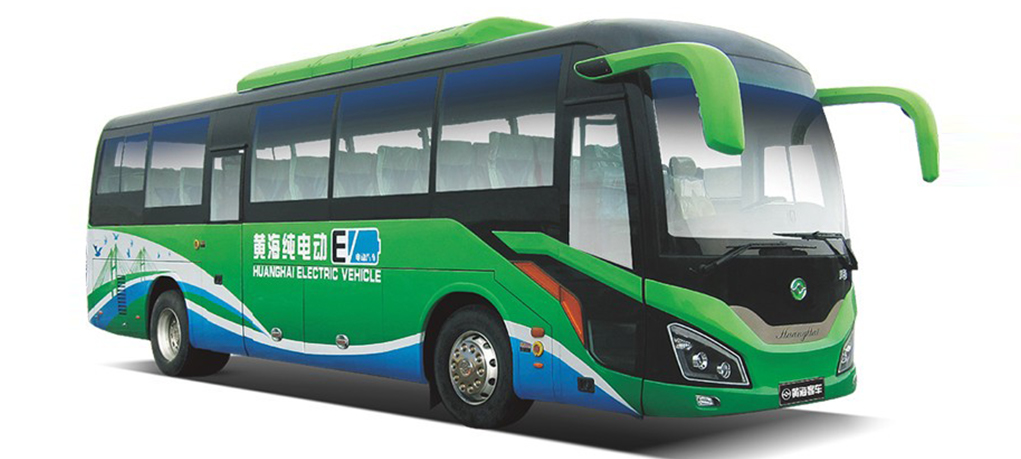

DD6110KEV5 Electric city coach
10840×2500×3430/3580 Appearance (mm)
24-48, 52 Rated seats
More
Huanghai DD6110KEV5 Electric city coach adopts the model awarded with the 2017IDA Design Gold Medal and sets a model for extreme beauty of coaches. It’s intelligent thermal management system reflects the concept of energy saving and environmental protection. Long wheel base and large luggage compartment ensure the coach a larger interior space and higher loading capacity.

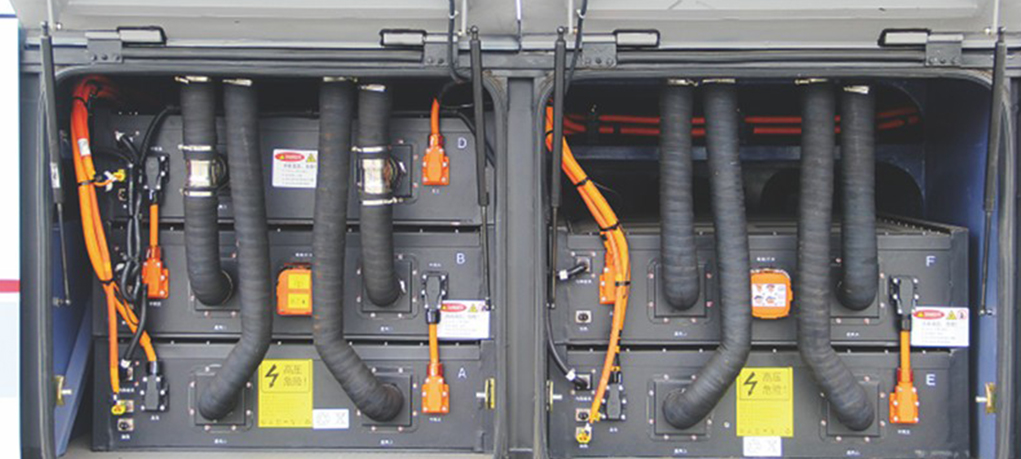

Battery pack: lithium iron phosphate batteries/ Contemporary Amperex Technology Co., Limited (CATL).
Battery capacity：163.3 kWh/184.4kWh
Driving range under test condition (uniform velocity method) ≥260/300km
Specification
Dimension（mm） 10840×2500×3430/3580
Wheelbase（mm） 5820
Approach/departure angle(°) 10/10
Rated seats 24-48, 52
Max. speed （km/h） 85
Battery capacity 163.3、184.4kWh （Lithium iron phosphate (LifePO)）
Motor model lvkon
Suspension Air Suspension system or Leaf spring
G.V.W.(kg) 16500
Curb weight (kg) 11500/11850
Tire 295/80R22.5
Optional equipment Conditioner, single door
