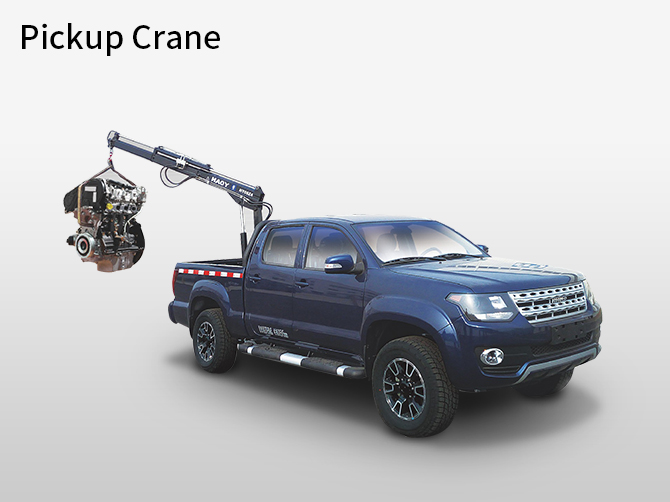

The truck is equipped with a folding-jib crane (model: HY08,HA10) with the weight of 160Kg and maximum lifting load of 445Kg. Side footboard, wheel rim, rope hooks on both sides of rear cargo box, rear landing legs and folding-jib crane are optional for installation. The maximum net power of the engine: 99 kW.
Specifications
Name DD5030JSQ Pickup Crane
Size: L x W x H 5560x1840x2048,2098
Cargo compartment dimension（mm） 1815x1520x515
G.V.W.(kg) 2795
Curb mass(kg) 2150
Rated loadkg) 320
Wheel base（mm） 3405
Number of axles 2
ABS nothing
Approaching angle/ departure angle 32/26
Front & rear overhang(mm) 895/1260
Maximum speed（km/h） 150
Tire number 4
The specification of tires 245/65R17,265/65R17
Front track 1538,1548
Rear track 1538,1548
Oil consumption rate(L/100Km) 10.7
Emission standard GB18352.5-2013 Guo V
