Business version
Delivery version
Logistics version

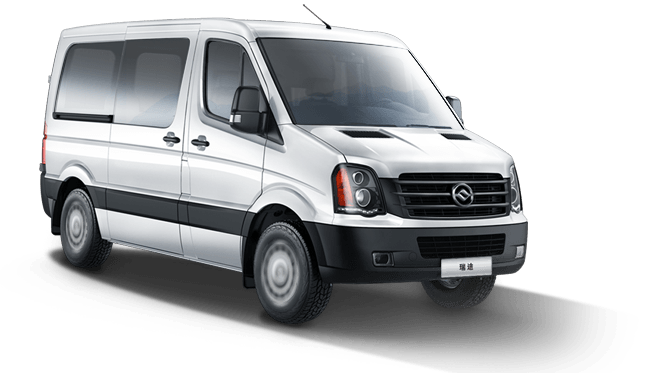

Huanghai Raytour Business version
Engine
YUCHAI2.0L National-V Turbocharged Diesel Engines
Engine displacement（L）
2
Specifications - Engine - Appearance - Safety Experience - Functions
Parameters
Dimension（ length x width x height mm) 5295（5380）/2025/2375
Wheel base（mm) 3300
Seating capacity 12 11
Maximum gross mass(kg) 3960
Curb weight(kg) 2460
Maximum payload(kg) -
Cargo space(length x width x height(mm)) -
Fuel consumption(l/100km) 10
Fuel tank capacity 80
Rear axle ratio（4.1） ● ●
Rear axle ratio（4.875） × ×
Maximum speed(km/h) 135/125
Powertrain
Model YC4Y20
Emission standard National-V+SCR
Engine displacement(L) 2
Power rating/revolutions(kW/rpm) 90/3600
Maximum torque revolutions(N.m/rpm) 280/1600-2400
Gearbox ZM035
Appearance & Design
Sliding doors ● ×
Integrated side windows ● ●
White glass ● ●
Push-pull side windows(white glass)(front) ○ ○
Push-pull side windows(white glass)(rear) ○ ○
Push-pull side windows(white glass)(entire) ○ ○
Double-wing rear doors ● ●
Power door locks ● ●
Front power windows ● ●
Outside rear view mirrors (electric-controlled and heated mirrors) ● ●
Aluminum alloy wheels ○ ○
Steel wheels ● ●
Wheel trims (large) ○ ○
Wheel trims (small) ○ ○
Full-size spare tire (steel) ● ●
Loud speakers ● ●
Woofers ● ●
Chrome-plated grille （2015） ○ ○
Black grille（2015） ● ●
Safety & Theft-Prevention
Front disc brakes/Rear drum brakes ● ●
Kit for three-point seat belts (with pre-tensioners and load-limiters) on front seats ○（Security package） ○（Security package）
Three-point seat belts on front seats (ELR) ● ●
Rear seat belts(two-point) ● ●
Rear seat belts(three-point) × ×
Seat belt warning for the driver ● ●
The whole vehicle is equipped with electronic anti-theft devices ● ●
High mount stop lights ● ●
Speed-sensing door lock ● ●
Doors automatically unlocked after the flameout ● ●
Front fog lamps ○（Security package） ○（Security package）
Parking distance control ○（Security package） ○（Security package）
ABS+EBD ● ●
Indicator that the key fob is left behind ● ●
Indicator that the front lamps are still switched on ● ●
Experience
Front AC ● ●
Rear AC ● ●
Rear vents for warm air ● ●
Nylon mesh filter at the inlet of AC ● ●
Pollen filter at the inlet of AC ○ ○
Adjustable driver seat (six-way) ● ●
Sun shade × ×
Remote, folding key fob ● ●
Electronic clock ● ●
Seats of woven fabric ● ●
Leather-wrapped seats ○ ○
Premium leather-wrapped seats ○ ○
B-pillar handrail ● ×
Upper handrail on the right front door × ●
Handrail on the right front ceiling ● ×
MP3+Radio ● ●
MP5+Navigation+Parking distance control+Radio ○（Comfort bag） ○（Comfort bag）
Tire pressure monitoring system × ×
Dashboard camera × ×
Speakers on the dashboard (each at the left and right side) × ×
Speakers on the front doors (each at the left and right side) ● ●
Speakers on the side walls (each at the left and right side) ● ●
Interior cabin lamp (one) ● ●
Fuel-assisted heating system ○ ○
Functions
The CAN bus system for central error diagnosis ● ●
Instantaneous fuel consumption display ● ●
Mileage display ● ●
Running board × ×
Cargo hooks × ×
D-pillar handrail × ×
Van partitions × ×
Side fenders for trucks (honeycomb pattern) × ×
Side fenders for passenger car (below) ● ●
Side fenders for passenger car (ABS plastic) ● ●
Simple ceiling (for the delivery version) × ×
Remarks: ● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
A225有滑门
A226无滑门
Huanghai Raytour Delivery version
Engine
YUCHAI2.0L National-V Turbocharged Diesel Engines
Engine displacement（L）
2
Specifications - Engine - Appearance - Safety Experience - Functions
Parameters
Dimension（ length x width x height mm) 5295（5380）/2025/2375
Wheel base（mm) 3300
Seating capacity 5-9
Maximum gross mass(kg) 3595
Curb weight(kg) 2455
Maximum payload(kg) -
Cargo space(length x width x height(mm)) -
Fuel consumption(l/100km) 10.4
Fuel tank capacity 80
Rear axle ratio（4.1） ×
Rear axle ratio（4.875） ●
Maximum speed(km/h) 125/135
Powertrain
Model YC4Y20
Emission standard National-V+SCR
Engine displacement(L) 2
Power rating/revolutions(kW/rpm) 90/3600
Maximum torque revolutions(N.m/rpm) 280/1600-2400
Gearbox ZM035
Appearance & Design
Sliding doors ●
Integrated side windows ●
White glass ●
Push-pull side windows(white glass)(front) ○
Push-pull side windows(white glass)(rear) ○
Push-pull side windows(white glass)(entire) ○
Double-wing rear doors ●
Power door locks ●
Front power windows ●
Outside rear view mirrors (electric-controlled and heated mirrors) ●
Aluminum alloy wheels ○
Steel wheels ●
Wheel trims (large) ○
Wheel trims (small) ○
Full-size spare tire (steel) ●
Loud speakers ●
Woofers ×
Chrome-plated grille （2015） ×
Black grille（2015） ●
Safety & Theft-Prevention
Front disc brakes/Rear drum brakes ●
Kit for three-point seat belts (with pre-tensioners and load-limiters) on front seats ○（Security package）
Three-point seat belts on front seats (ELR) ●
Rear seat belts(two-point) ×
Rear seat belts(three-point) ●
Seat belt warning for the driver ●
The whole vehicle is equipped with electronic anti-theft devices ●
High mount stop lights ●
Speed-sensing door lock ●
Doors automatically unlocked after the flameout ●
Front fog lamps ○（Security package）
Parking distance control ○（Security package）
ABS+EBD ●
Indicator that the key fob is left behind ●
Indicator that the front lamps are still switched on ●
Experience
Front AC ●
Rear AC ×
Rear vents for warm air ×
Nylon mesh filter at the inlet of AC ●
Pollen filter at the inlet of AC ×
Adjustable driver seat (six-way) ●
Sun shade ×
Remote, folding key fob ×
Electronic clock ×
Seats of woven fabric ●
Leather-wrapped seats ×
Premium leather-wrapped seats ×
B-pillar handrail ●
Upper handrail on the right front door ×
Handrail on the right front ceiling ●
MP3+Radio ●
MP5+Navigation+Parking distance control+Radio ×
Tire pressure monitoring system ×
Dashboard camera ×
Speakers on the dashboard (each at the left and right side) ×
Speakers on the front doors (each at the left and right side) ●
Speakers on the side walls (each at the left and right side) ×
Interior cabin lamp (one) ●
Fuel-assisted heating system ×
Functions
The CAN bus system for central error diagnosis ●
Instantaneous fuel consumption display ●
Mileage display ●
Running board ○
Cargo hooks ×
D-pillar handrail ×
Van partitions ×
Side fenders for trucks (honeycomb pattern) ×
Side fenders for passenger car (below) ●
Side fenders for passenger car (ABS plastic) ×
Simple ceiling (for the delivery version) ●
Remarks: ● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
F042有滑门
F043无滑门
Huanghai Raytour 物流版
Engine
YUCHAI2.0L National-V Turbocharged Diesel Engines
Engine displacement（L）
2
Specifications - Engine - Appearance - Safety Experience - Functions
Parameters
Dimension（ length x width x height mm) 5295（5380）/2025/2375
Wheel base（mm) 3300
Seating capacity 3
Maximum gross mass(kg) 3960
Curb weight(kg) 2250
Maximum payload(kg) 1515
Cargo space(length x width x height(mm)) 2615/1775/1630
Fuel consumption(l/100km) 10.6
Fuel tank capacity 80
Rear axle ratio（4.1） ×
Rear axle ratio（4.875） ●
Maximum speed(km/h) 125/135
Powertrain
Model YC4Y20
Emission standard National-V+SCR
Engine displacement(L) 2
Power rating/revolutions(kW/rpm) 90/3600
Maximum torque revolutions(N.m/rpm) 280/1600-2400
Gearbox ZM035
Appearance & Design
Sliding doors ●
Integrated side windows ×
White glass ×
Push-pull side windows(white glass)(front) ×
Push-pull side windows(white glass)(rear) ×
Push-pull side windows(white glass)(entire) ×
Double-wing rear doors ●
Power door locks ●
Front power windows ●
Outside rear view mirrors (electric-controlled and heated mirrors) ●
Aluminum alloy wheels ×
Steel wheels ●
Wheel trims (large) ○
Wheel trims (small) ○
Full-size spare tire (steel) ●
Loud speakers ●
Woofers ×
Chrome-plated grille （2015） ×
Black grille（2015） ●
Safety & Theft-Prevention
Front disc brakes/Rear drum brakes ●
Kit for three-point seat belts (with pre-tensioners and load-limiters) on front seats ○（Security package）
Three-point seat belts on front seats (ELR) ●
Rear seat belts(two-point) ×
Rear seat belts(three-point) ×
Seat belt warning for the driver ●
The whole vehicle is equipped with electronic anti-theft devices ●
High mount stop lights ●
Speed-sensing door lock ●
Doors automatically unlocked after the flameout ●
Front fog lamps ○（Security package）
Parking distance control ○（Security package）
ABS+EBD ●
Indicator that the key fob is left behind ●
Indicator that the front lamps are still switched on ●
Experience
Front AC ●
Rear AC ×
Rear vents for warm air ×
Nylon mesh filter at the inlet of AC ●
Pollen filter at the inlet of AC ×
Adjustable driver seat (six-way) ●
Sun shade ×
Remote, folding key fob ×
Electronic clock ×
Seats of woven fabric ●
Leather-wrapped seats ×
Premium leather-wrapped seats ×
B-pillar handrail ×
Upper handrail on the right front door ×
Handrail on the right front ceiling ●
MP3+Radio ●
MP5+Navigation+Parking distance control+Radio ×
Tire pressure monitoring system ×
Dashboard camera ×
Speakers on the dashboard (each at the left and right side) ×
Speakers on the front doors (each at the left and right side) ●
Speakers on the side walls (each at the left and right side) ×
Interior cabin lamp (one) ●
Fuel-assisted heating system ×
Functions
The CAN bus system for central error diagnosis ●
Instantaneous fuel consumption display ●
Mileage display ●
Running board ○
Cargo hooks ×
D-pillar handrail ×
Van partitions ●
Side fenders for trucks (honeycomb pattern) ●(侧围下护板)
Side fenders for passenger car (below) ×
Side fenders for passenger car (ABS plastic) ×
Simple ceiling (for the delivery version) ●
Remarks: ● means Standard; ○ means Available; × means Not Available; (This information is for reference only, and the specific configuration is subject to the actual vehicle)
