Various parts are optional for installation on the chassis; Side protection: Q235-A, bolt connection; Rear protection: Q235-A, welding connection, section size: 140mmx60mm, ground clearance: 490mm; ABS model: :CM4XL; ABS manufacturer: Changchun Kemi Automobile Brake Systems Co., Ltd.; Equipped with a satellite positioning driving recorder; The maximum net power of the engine (CA6DL2-35E5): 99 kW; Oil consumption rate : 43.8L/100km.
Specifications

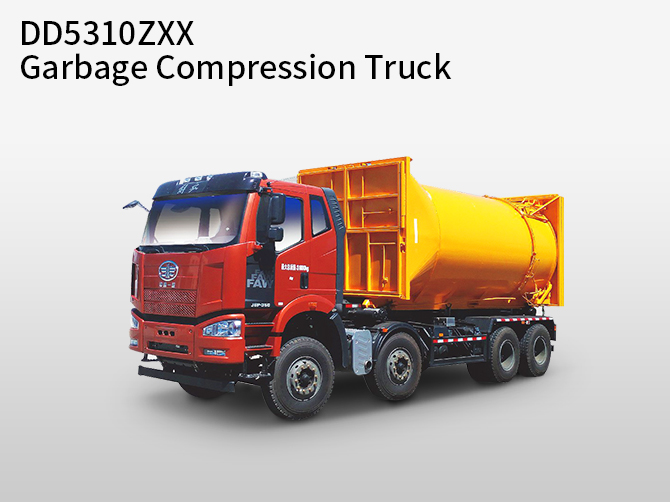

Name DD5310ZXX车厢可卸式垃圾车
Size: L x W x H 8987x2500x3100,3220
Cargo compartment dimension（mm） -
G.V.W.(kg) 31000
Curb mass(kg) 13900
Rated loadkg) 16905,16970
Wheel base（mm） 2100+3200+1350
Number of axles 4
ABS have
Approaching angle/ departure angle 24/32
Front & rear overhang(mm) 1470/867
Maximum speed（km/h） 79
Tire number 12
The specification of tires 12R22.5,11.00R20,11.00-20,12.00R20 18PR,12.00-2018PR
Front track 2020/2020,2048/2048
Rear track 1847/1847,1878/1878
Oil consumption rate(L/100Km) 43.8
Emission standard GB17691-2005 guo V .GB3847-2005
