With front snow shovel, center ice breaking shovel, ice roller and rear snow roller brush (required during the snow and ice cleaning operation) installed, total vehicle length: 11150mm, no protection; Side protection: Q235A, bolt connection; Rear protection: Q235A, bolt connection, section size: 50X100mm, ground clearance: 500mm; Wheelbase: 5000mm; ABS model: CM4XL; ABS manufacturer: Changchun Kemi Automobile Brake Systems Co., Ltd.; Equipped with a satellite positioning driving recorder.
Specifications

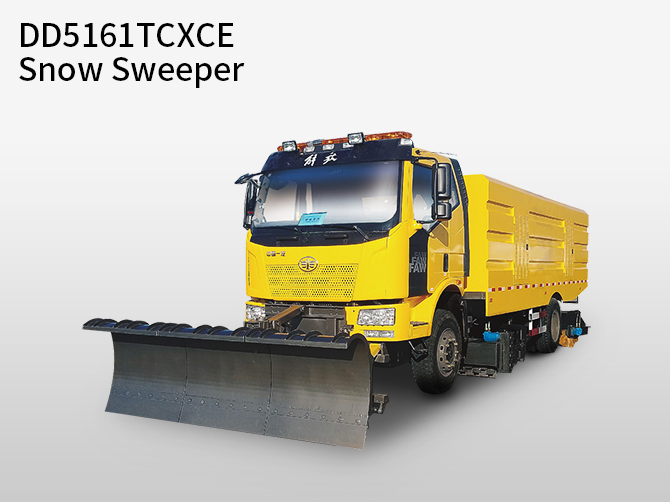

Name DD5161TCXCE Snowplow
Size: L x W x H 11150,9460x2500x3060
Cargo compartment dimension（mm） -
G.V.W.(kg) 16000
Curb mass(kg) 12150
Rated loadkg) 3655
Wheel base（mm） 5300,5000,4700,4500
Number of axles 2
ABS have
Approaching angle/ departure angle 11/10
Front & rear overhang(mm) 1490/2970
Maximum speed（km/h） 100
Tire number 6
The specification of tires 10.00-20,10.00R20r11R22.5,11.00R20
Front track 1914,1928
Rear track 1847,1860,1890
Oil consumption rate(L/100Km) -
Emission standard -
