The sleeper cap with the bed behind the driver’s seat and the sleeper cap with the bed on the right side are optional for installation; Left side protection: Q235B, bolt connection. No right side protection because of the installation of the manipulator; Rear protection: Q235B, bolt connection, section size: 50x120mm, ground clearance: 490mm. The maximum net power of the engine: CA4D3C-12E5(88kw)，WP3.7Q130E50(91kw); ABS manufacturer: Shanghai Wanjie Automobile Control Systems Co., Ltd.; ABS model:V IE ABS-II; Engine fuel consumption rate (L/100Km): CA4D3C-12E5 (17.2), WP3.7Q130E50 (17.7).
Specifications

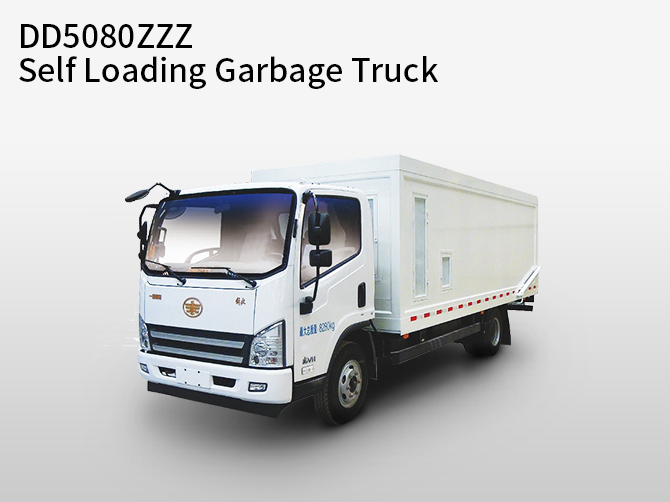

Name DD5080ZZZ Self Loading Garbage Truck/td>
Size: L x W x H 7655x2340x2750
Cargo compartment dimension（mm） -
G.V.W.(kg) 8280
Curb mass(kg) 6610
Rated loadkg) 1475
Wheel base（mm） 4200
Number of axles 2
ABS nothing
Approaching angle/ departure angle 21/12
Front & rear overhang(mm) 1150/2305
Maximum speed（km/h） 90
Tire number 6
The specification of tires 7.50-16,7.50R16,8.25-16,8.25R16
Front track 1640,1665
Rear track 1540,1590
Oil consumption rate(L/100Km) 17.2,17.7
Emission standard -
