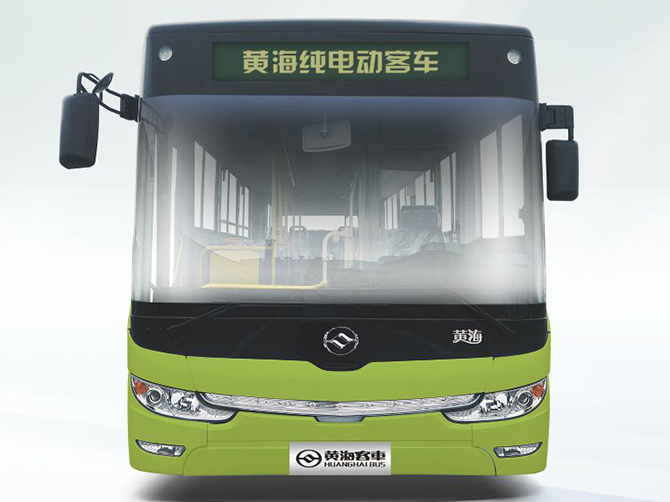

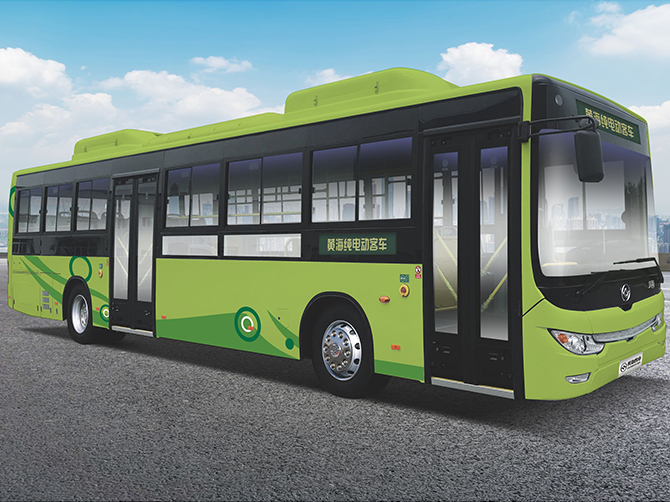

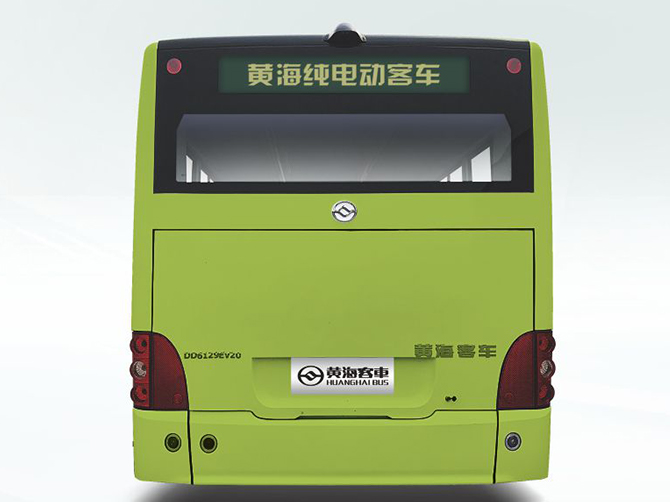

DD6129EV20 Electric city coach
Appearance(mm): 12000×2550×3350
Rated seats:84/24-46,76/24-46

Huanghai DD6129EV20Electric city coach adopts "blade" front wall, full load-bearing structure, lightweight design and Huanghai self-developed bus chassis. The adoption of the permanent magnet motor, lithium-ion battery and vehicle intelligent thermal management system reflects the concept of energy saving and environmental protection. The separation of passenger’s compartment, battery compartment and control compartment ensures driving safety. Long wheelbase and short front & rear overhang structure give the coach a larger interior space and stronger loading capacity. The intelligent remote monitoring system realizes the whole-life-cycle safety management of the coach.

Specification
Dimension(mm) 12000×2550×3350
Wheelbase(mm) 6100
Approach/departure angle(°) 7/7
Seating capacity (person) 84/24-46,76/24-46
Max. speed (km/h) 69
G.V.W.(kg) 18000
Curb weight(kg) 13000,12500
Battery capacity(kWh) 338.4
Motor model Auto EkontrolEK1352850PMS2
Suspension Front & rear air spring
Tire 275/70R22.5
Optional equipmen Air conditioner,Electric defrost, onboard electronic equipment
