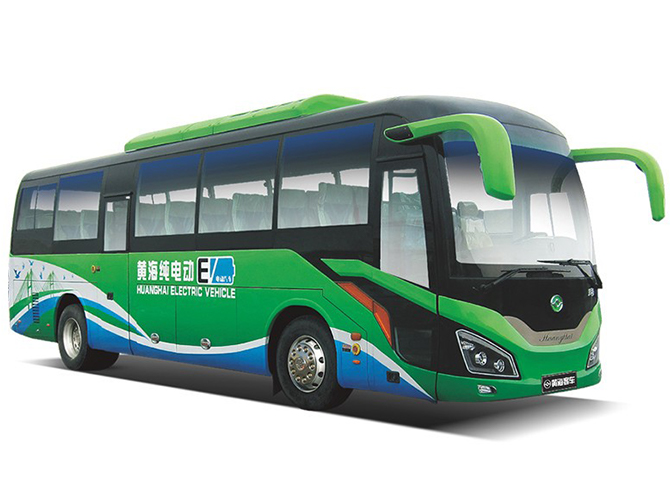

DD6110KEV5 Electric city bus
Appearance(mm): 10840×2500×3430/3580
Rated seats:24-48, 52

Huanghai DD6110KEV5 pure electric highway coach adopts the model awarded with the 2017IDA Design Gold Medal and sets a model for extreme beauty of coaches. It’s intelligent thermal management system reflects the concept of energy saving and environmental protection. Long wheel base and large luggage compartment ensure the coach a larger interior space and higher loading capacity.

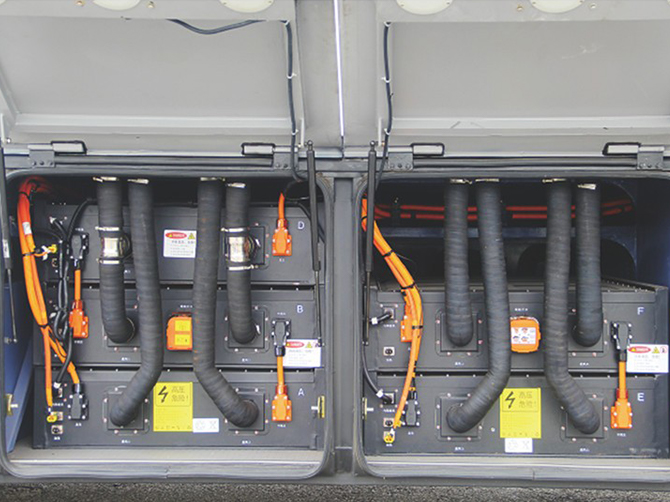

Battery pack:lithium iron phosphate (LifePO) / Contemporary Amperex Technology Co., Limited (CATL).

Battery capacity:163.3 kWh/184.4kWh

Driving range under test condition (uniform velocity method)≥260/300km

Specification
Dimension(mm) 10840×2500×3430/3580
Wheelbase(mm) 5820
Approach/departure angle(°) 10/10
Rated seats 24-48, 52
Max. speed (km/h) 85
Battery capacity 163.3、184.4kWh (Lithium iron phosphate (LifePO))
Motor model lvkon
Suspension Suspension system or Leaf spring
G.V.W.(kg) 16500
Curb weight(kg) 11500/11850
Tire 295/80R22.5
Optional equipmen Conditioner, single door
